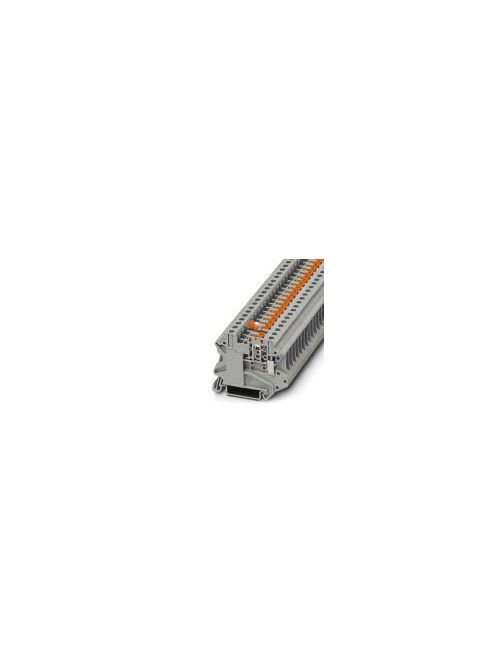

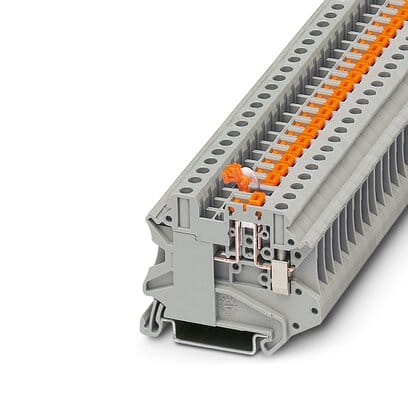

Phoenix Blocks - Phoenix Contact 3046139 500 Volt 20 Amp 26 to 10 AWG Gray Polyamide Screw Connection Knife Disconnect Terminal Block
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179189755626
Amperage - 20 Amp
Catalog Number - 3046139
Color - Gray
Country of Origin - Germany
Packaging
50 ea
EAN
Part #
200027
Catalog #
3046139
Commercial reference
3046139
12-Digit UPC:
179189755626
Amperage:
20 Amp
Catalog Number:
3046139
Color:
Gray
Country of Origin:
Germany
ERP_productname:
PHNX 3046139 UT 4-MT
Family Brand Name:
Phoenix
Length:
57.8 mm
Mounting Type:
NS 35/7.5, NS 35/15 DIN Rail
Torque Rating:
0.6 - 0.8 N-m
Type:
Knife Disconnect
Voltage:
500 Volt
Widths:
6.2 mm
SoneparProductId:
SKU_US_58556479
Knife disconnect terminal block, nom. voltage: 500 V, nominal current: 20 A, connection method: Screw connection, Rated cross section: 4 mm., cross section: 0.14 mm. - 6 mm., mounting: NS 35/7,5, NS 35/15, color: gray Features: Tested for railway applications; Compact design and high current carrying capacity of 20 A - Approvals: cULus Recognized; EAC; CSA; UL Recognized; cUL Recognized
