Phoenix Blocks - Phoenix Contact 3046430 250 Volt 10 Amp 24 to 8 AWG Black Polyamide Screw Connection Lever Fuse Modular Terminal Block
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463560558334
Amperage - 10 Amp
Catalog Number - 3046430
Color - Black
ERP_productname - PHNX 3046430 UT 6-HESILA 250 (6,3X32)
Packaging
1 ea
EAN
Part #
142844
Catalog #
3046430
Commercial reference
3046430
12-Digit UPC:
463560558334
Amperage:
10 Amp
Catalog Number:
3046430
Color:
Black
ERP_productname:
PHNX 3046430 UT 6-HESILA 250 (6,3X32)
Family Brand Name:
Phoenix
Length:
57.8 mm
Mounting Type:
NS 35/7.5, NS 35/15 DIN Rail
Torque Rating:
1.5 - 1.8 N-m
Voltage:
250 Volt
Widths:
8.2 mm
SoneparProductId:
SKU_US_58458195

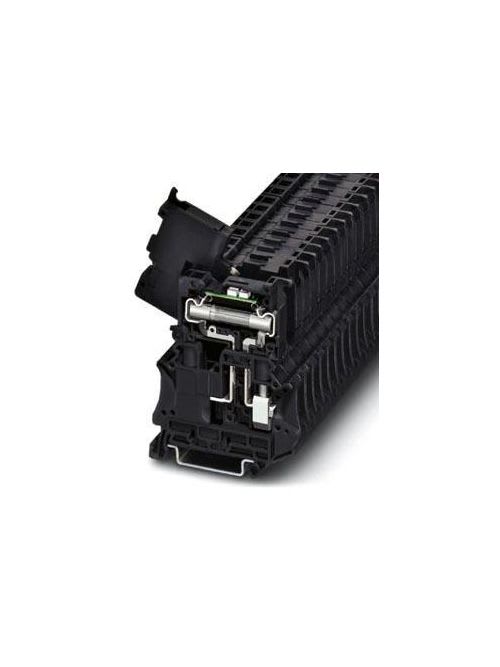

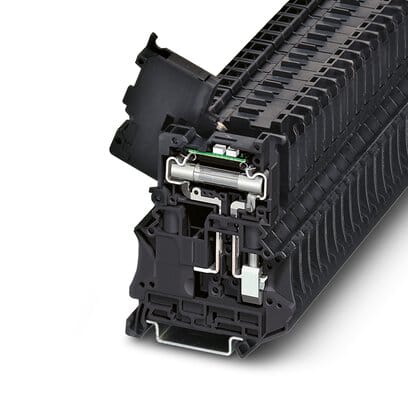

Lever-type fuse terminal block, color: black, for 6.3 x 32 mm G fuse inserts, with LED for 250 V AC Features: An extremely compact design; Test connection on both sides in safety lever; Tested for railway applications - Approvals: cULus Recognized; EAC; IECEE CB Scheme; DNV GL; KEMA-KEUR; RS; CSA; UL Recognized; cUL Recognized
