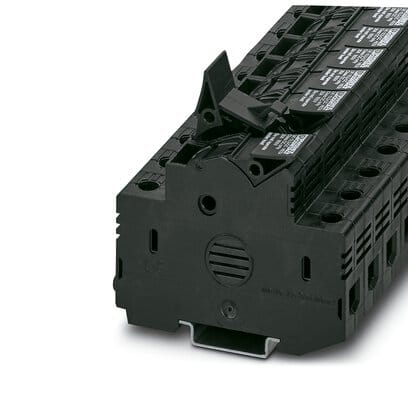

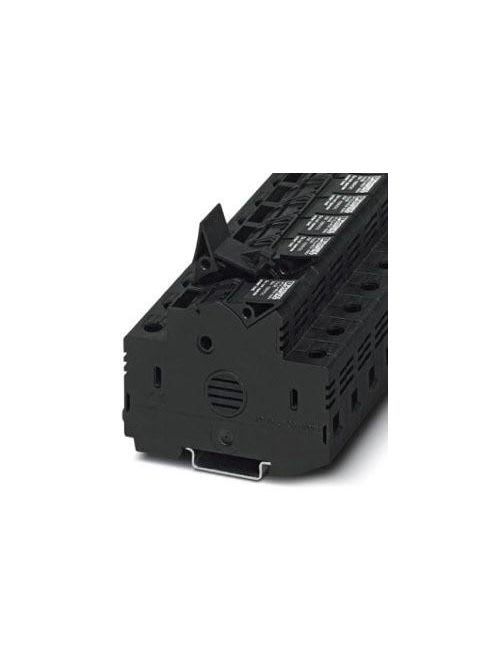

Phoenix Blocks - Phoenix Contact 3048603 690 Volt 32 Amp 16 to 4 AWG Black Polyamide Screw Connection Fuse Modular Terminal Block
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463561160154
Catalog Number - 3048603
Country of Origin - Germany
Current - 30 Amp
ERP_productname - PHNX 3048603 UK 103-CC HESI N 3POL
Packaging
1 ea
EAN
Part #
203215
Catalog #
3048603
Commercial reference
3048603
12-Digit UPC:
463561160154
Catalog Number:
3048603
Country of Origin:
Germany
Current:
30 Amp
ERP_productname:
PHNX 3048603 UK 103-CC HESI N 3POL
Family Brand Name:
Phoenix Products
Length:
81 mm
Widths:
54 mm
SoneparProductId:
SKU_US_58459484
Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: Class CC, nom. voltage: 600 V, nominal current: 30 A, connection method: Screw connection, Rated cross section: 25 mm., cross section: 1.5 mm.- 25 mm., mounting type: NS 35/7,5, NS 35/15, color: black Features: Easy to bridge; Fuse holder for fuses up to 600 V; For 10 x 38 CC fuse-links in accordance with UL 4248-4; 3-pos. blocked version - Approvals: cULus Listed; EAC; CSA; UL Listed; cUL Listed
