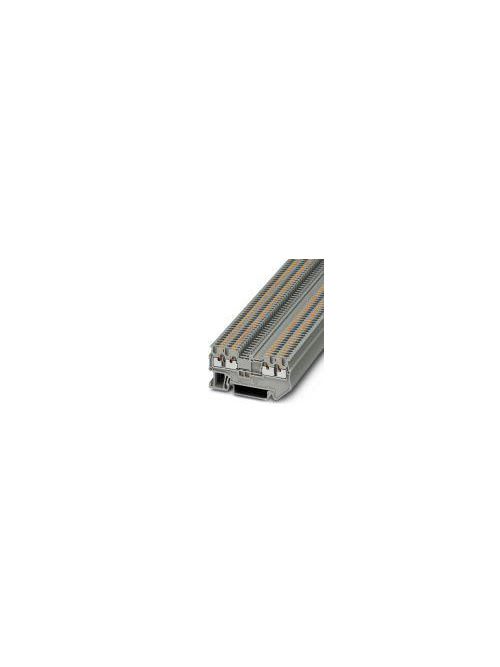

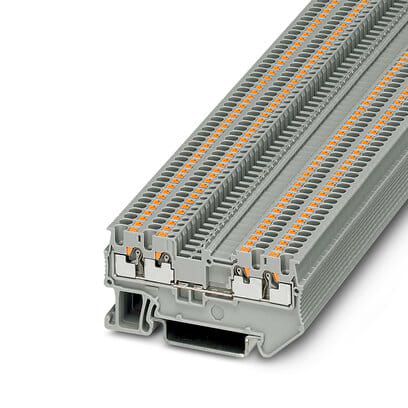

Phoenix Blocks - Phoenix Contact 3208197 500 Volt 17.5 Amp 26 to 14 AWG Gray Polyamide Push-In Connection Feed-Through Terminal Block
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463565643288
Amperage - 17.5 Amp
Applications - For Railway Industry, Machine Building, Plant Engineering, Process Industry
Catalog Number - 3208197
Color - Gray
Packaging
1 ea
EAN
Part #
179531
Catalog #
3208197
Commercial reference
3208197
12-Digit UPC:
463565643288
Amperage:
17.5 Amp
Applications:
For Railway Industry, Machine Building, Plant Engineering, Process Industry
Catalog Number:
3208197
Color:
Gray
Conductor Size:
26-16 AWG
Country of Origin:
Germany
ERP_productname:
PHNX 3208197 PT 1 5/S-QUATTRO
Family Brand Name:
Phoenix
Heights:
30.5 mm
Length:
63.2 mm
Type:
1-Row
Voltage:
500 Volt
Widths:
3.5 mm
SoneparProductId:
SKU_US_58596744
Feed-through terminal block, nom. voltage: 500 V, nominal current: 17.5 A, connection method: Push-in connection, 1 level, Rated cross section: 1.5 mm., cross section: 0.14 mm. - 1.5 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection; The compact design and front connection enable wiring in a confined space ; The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors; Tested for railway applications - Approvals: BV; VDE Zeichengenehmigung; EAC; cULus Recognized; EAC Ex; IECEx; LR; NK; ATEX; IECEE CB Scheme; DNV GL; ABS; CSA; UL Recognized; cUL Recognized
