Phoenix Blocks - Phoenix Contact 3211757 800 Volt 32 Amp 24 to 10 AWG Gray Polyamide Push-In Connection Feed-Through Terminal Block
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463564825920
Amperage - 32 Amp
Applications - For Railway Industry
Catalog Number - 3211757
Color - Gray
Packaging
1 ea
EAN
Part #
194156
Catalog #
3211757
Commercial reference
3211757
12-Digit UPC:
463564825920
Amperage:
32 Amp
Applications:
For Railway Industry
Catalog Number:
3211757
Color:
Gray
Conductor Size:
24-10 AWG
Country of Origin:
China
ERP_productname:
PHNX 3211757 PT 4 24-10AWG 38AMP
Family Brand Name:
Phoenix
Heights:
35.3 mm
Length:
56 mm
Number of Poles:
2 Pole
Type:
1-Level, Feed-Through
Voltage:
800 Volt Nominal, 8 kV Surge
Widths:
6.2 mm
SoneparProductId:
SKU_US_58597334

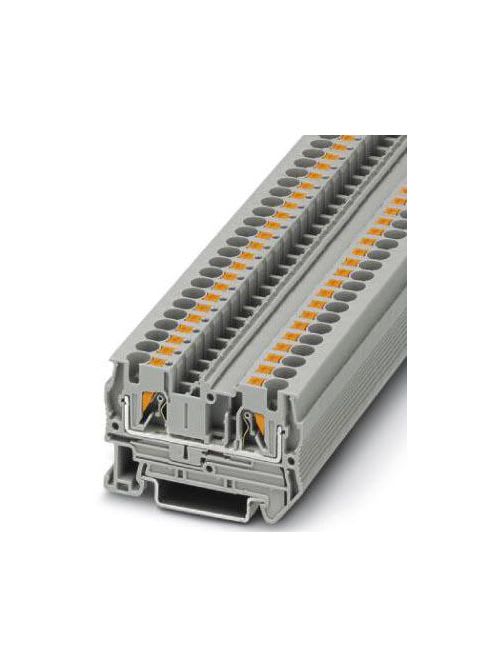

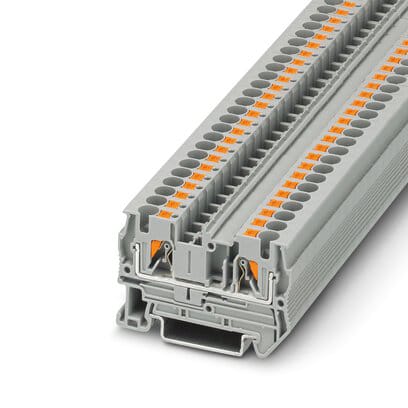

Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, connection method: Push-in connection, Rated cross section: 4 mm., cross section: 0.2 mm. - 6 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: The compact design and front connection enable wiring in a confined space ; In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection; The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors; Tested for railway applications - Approvals: BV; VDE Gutachten mit Fertigungs.berwachung; cULus Recognized; EAC; IECEx; LR; PRS; NK; IECEE CB Scheme; ATEX; DNV GL; RS; CSA; UL Recognized; cUL Recognized
