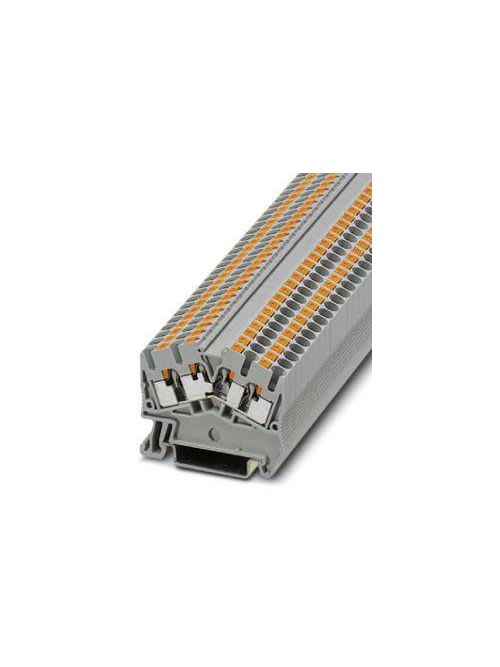

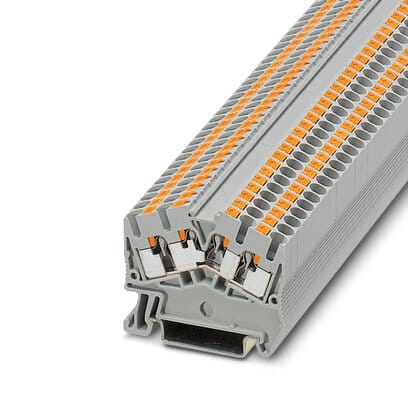

Phoenix Blocks - Phoenix Contact 3211993 800 Volt 24 Amp 26 to 12 AWG Gray Polyamide Push-In Connection Feed-Through Terminal Block

Feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, connection method: Push-in connection, 1 level, Rated cross section: 2.5 mm., cross section: 0.14 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: 2, 3, and 4-conductor terminal blocks with the same shape; Ground terminal blocks of the same shape are available; The PTS 2,5, which is equipped with four bridge shafts, offers a wide range of potential bridging options; Angled conductor entry for use in flat terminal boxes; Large space saving when used in concealed wiring systems - Approvals: BV; VDE Zeichengenehmigung; cULus Recognized; EAC; LR; IECEx; PRS; NK; ATEX; IECEE CB Scheme; DNV GL; RS; ABS; CSA; UL Recognized; cUL Recognized
