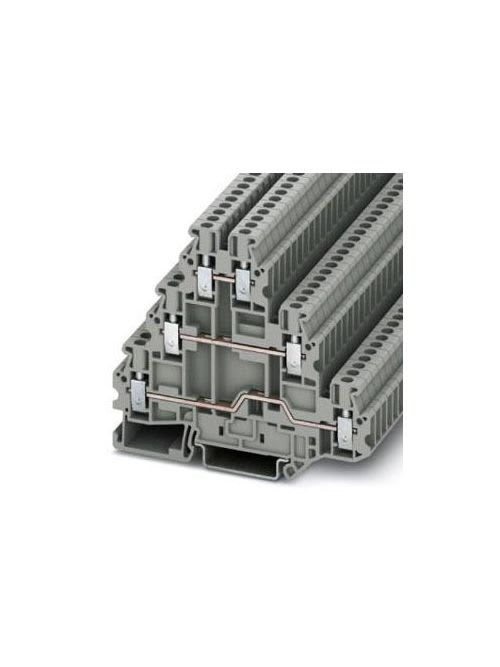

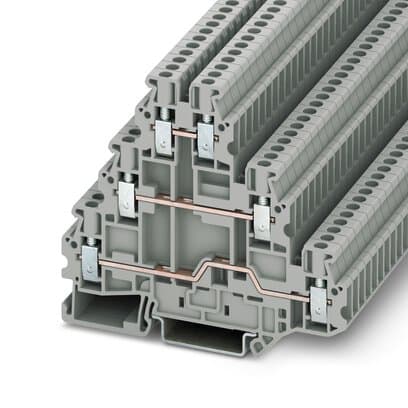

Phoenix Blocks - Phoenix Contact 3214259 500 Volt 19 Amp 26 to 12 AWG Gray Polyamide Screw Connection Feed-Through Terminal Block

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 463565754090

  • Amperage - 19 Amp

  • Catalog Number - 3214259

  • Color - Gray

  • Conductor Size - 0.14 - 4 mm.

Packaging

  • 1 ea

EAN

Part #

199753

Catalog #

3214259

Commercial reference

3214259

12-Digit UPC:

463565754090

Amperage:

19 Amp

Catalog Number:

3214259

Color:

Gray

Conductor Size:

0.14 - 4 mm.

ERP_productname:

PHNX 3214259 UT 25-3L

Family Brand Name:

Phoenix

Length:

90 mm

Mounting Type:

NS 35/7.5, NS 35/15 DIN Rail

Torque Rating:

0.5 - 0.6 N-m

Type:

Multi-Level

Voltage:

500 Volt

Widths:

5.2 mm

SoneparProductId:

SKU_US_58653585

Multi-level terminal block, nom. voltage: 500 V, nominal current: 19 A, connection method: Screw connection, Rated cross section: 2.5 mm., cross section: 0.14 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: Since function shafts are provided on each level, all potential distribution tasks can be implemented quickly; For a clear overview, each terminal point supports large-surface labeling; A very high wiring density is achieved with the compact three-level terminal blocks; Tested for railway applications - Approvals: cULus Recognized; EAC; CSA; UL Recognized; cUL Recognized
