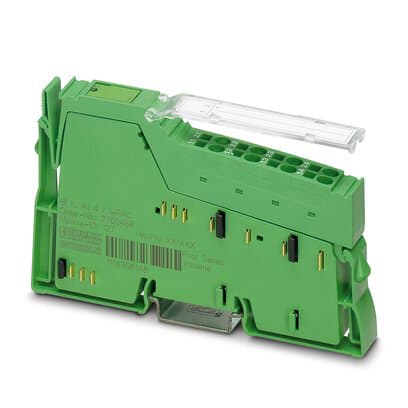

Phoenix Blocks - Terminal inline 4-input analog 30mA 24VDC 0.94W
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 046356566546
Amperage - 30 mA
Catalog Number - 2700458
Conductor Size - 28-16 AWG
Country of Origin - Germany
Packaging
1 ea
EAN
Part #
210121
Catalog #
2700458
Commercial reference
2700458
12-Digit UPC:
046356566546
Amperage:
30 mA
Catalog Number:
2700458
Conductor Size:
28-16 AWG
Country of Origin:
Germany
Depths:
71.5 mm
ERP_productname:
PHNX 2700458 IB IL AI 4/I-PAC
Family Brand Name:
Phoenix
Heights:
119.8 mm
Mounting Type:
DIN Rail
Type:
4-Analog Input, 2-Wire, Inline
Voltage:
24 VDC
Widths:
12.2 mm
SoneparProductId:
SKU_US_58535403
Inline, Analog input terminal, Analog inputs: 4, 0 mA ... 20 mA, 4 mA ... 20 mA, connection technology: 2-conductor, transmission speed in the local bus: 500 kbps, degree of protection: IP20, including Inline connector and labeling field Features: 4 analog differential input channels for connecting current signals; Connection of sensors in 2-wire technology; Current ranges: 0 mA ... 20 mA, 4 mA ... 20 mA; Mean-value generation of the inputs; Process data update of all channels in 250 .s; Diagnostic and status indicators - Approvals: cULus Listed; EAC; UL Listed; cUL Listed
