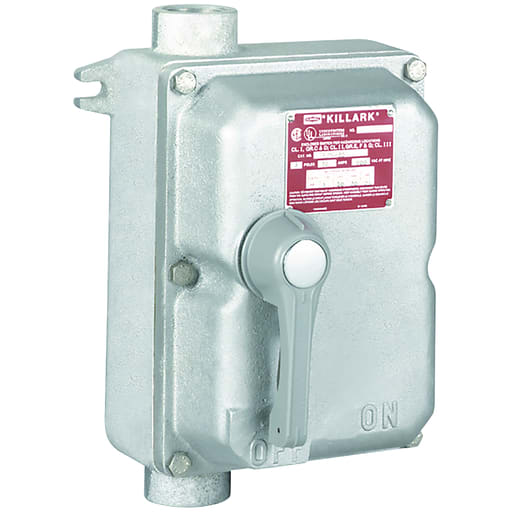

Raco Manufacturing - Killark XEDS-30 XEDS Series, 30 Amp Disconnect Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783936897981
Amperage - 30 Amp
Catalog Number - XEDS-30
Country of Origin - USA
ERP_productname - KLRK XEDS-30
Packaging
1 ea
EAN
00783936897981
Part #
240028
Catalog #
XEDS-30
Commercial reference
XEDS-30
12-Digit UPC:
783936897981
Amperage:
30 Amp
Catalog Number:
XEDS-30
Country of Origin:
USA
ERP_productname:
KLRK XEDS-30
Family Brand Name:
Killark Electric
Heights:
11-7/8 Inch
Length:
13-3/8 Inch
Material:
Aluminum
Mounting Type:
Wall
NEMA Size:
3R,4,9
Number of Poles:
3 Pole
Number of Wires:
4 Wire
Sub Brand:
Killark
Type:
Non Fusible
Widths:
8.75 in
SoneparProductId:
SKU_US_32020245
XEDS Series, 30 Amp Disconnect Switch Features: External handle is vault type with standard provisions for locking in \"OFF\" position with up to three padlocks.; Provisions for locking in \"ON\" position available as factory modification (add suffix SU40 to catalog number).; Enclosure and external handle is cast copper-free aluminum alloy (less than 4/10 of 1%).; Cover bolts are stainless steel.; Eaton (Cutler Hammer) Type DS Switches.; Two cast conduit hubs, one top and one bottom.; Internal disconnect handle mechanism is a sliding plate mounted to the cover.; Suitable for indoor applications.
