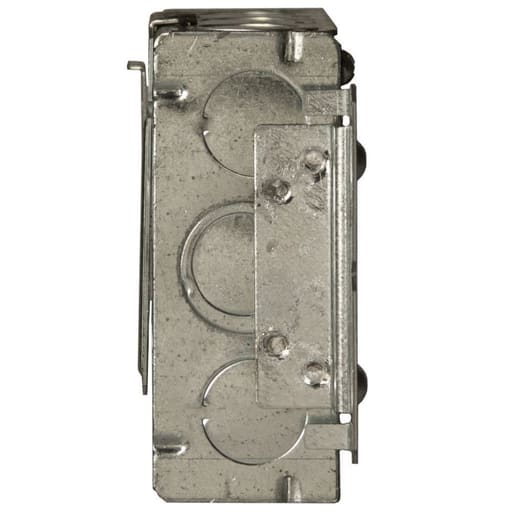

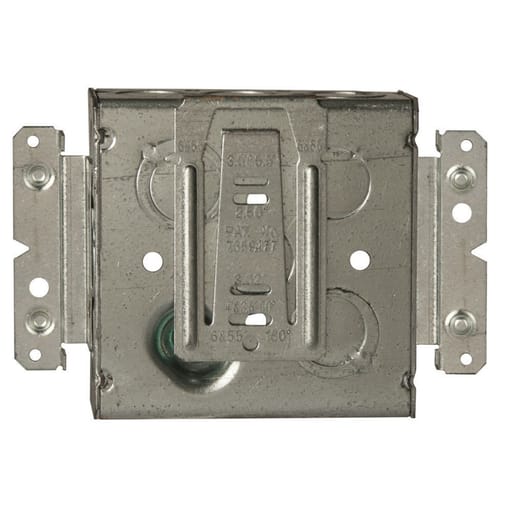

Raco Manufacturing - RACO 189M 4 x 4 x 1-1/2 Inch 21 In. Pre-Galvanized Steel HM Bracket/Ceiling/Wall Mount Welded Square Box with Pigtail
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 050169500019
Applications - Electrical
Catalog Number - 189M
Color - Silver
Construction - Welded
Packaging
1 ea
EAN
00050169500019
Part #
111867
Catalog #
189M
Commercial reference
189M
12-Digit UPC:
050169500019
Applications:
Electrical
Catalog Number:
189M
Color:
Silver
Construction:
Welded
Country of Origin:
USA
Depths:
1-1/2 Inch
ERP_productname:
RACO 189M 4SQBXW/BKT&SUPT 1-1/2DP 1/2-3/4TKO
Family Brand Name:
RACO
Heights:
4 Inch
Length:
2.063 Inch
Material:
Steel
Shape:
Square
Size:
1-1/2 IN
Type:
4 IN square box
Widths:
5.86 in
SoneparProductId:
SKU_US_58182062
4 in. Square Box, Welded, 1-1/2 in. Deep with Six 1/2 in. KO's & Four TKO's, Raised Ground, 8 in. #12 Solid Copper Pigtail, UBS, HM Bracket Features: TKO knockout design provides installation flexibilty; UBS integrated support provides the bracing on back of box for wall cavities between 2-1/2 in - 6 in. thickness, H/M; Welded construction; Six 1/2 in. knockouts and four TKO knockouts; UL Listed; 21.0 cu. in. capacity; Raised ground, 8 in. #12 Solid Copper pigtail; Acceptable in 2-hour fire rated walls
