Raco Manufacturing - Raco 223 4" Square Box, Welded, 1-1/2" Deep with NMSC Clamps, Three 1/2" KO's and One TKO, FS Bracket, Flush
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 050169002230
Applications - Electrical
Catalog Number - 223
Color - Gray
Construction - Welded
Packaging
1 ea
EAN
00050169002230
Part #
210248
Catalog #
223
Commercial reference
223
12-Digit UPC:
050169002230
Applications:
Electrical
Catalog Number:
223
Color:
Gray
Construction:
Welded
Country of Origin:
China
Depths:
1-1/2 Inch
ERP_productname:
RACO 223 4SQ 1-1/2D METAL STUD BOX
Family Brand Name:
RACO
Heights:
6.956 Inch
Length:
2.087 Inch
Material:
Steel
Number of Gangs:
2 Gang
Shape:
Square
Size:
4 IN
Type:
4 IN square box
Widths:
4.494 in
SoneparProductId:
SKU_US_58193534

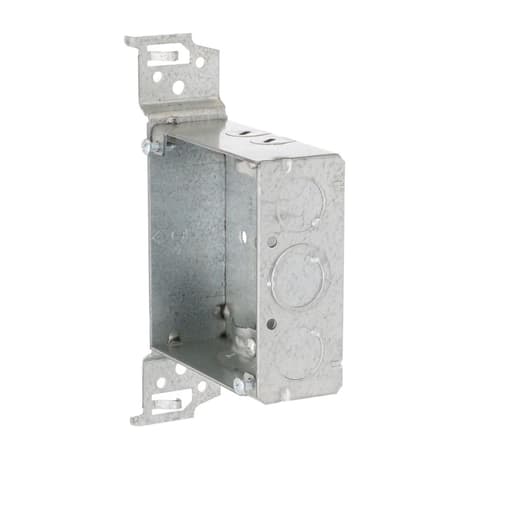

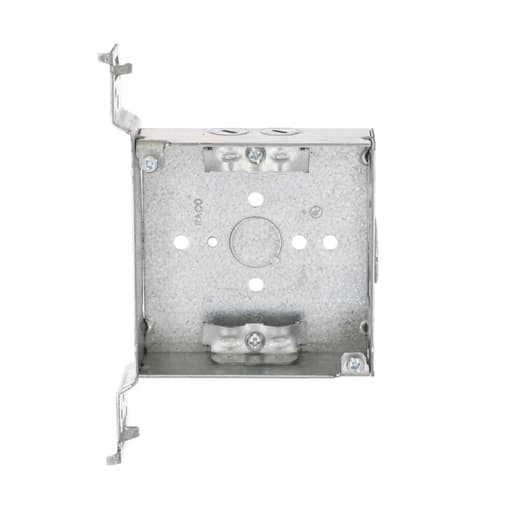

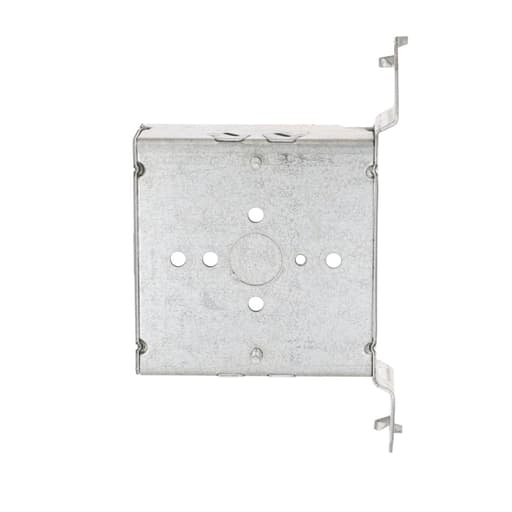

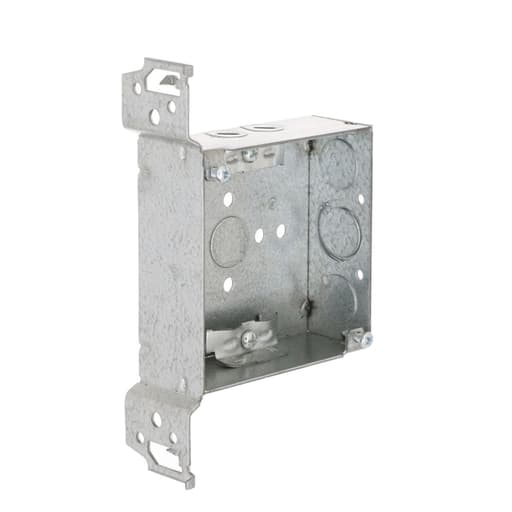

4 in. Square Box, Welded, 1-1/2 in. Deep with NMSC Clamps, Three 1/2 in. KO's and One TKO, FS Bracket, Flush Features: Welded steel construction with \"FS\" bracket to mount on flat side of stud and nonmetallic sheathed cable clamps; 4 in. square x 1-1/2 in. deep; TKO® Knockouts allow for design and installation flexibility; Supplied with three 1/2 in. and one 1/2-3/4 in. TKO® knockouts; Combination Phillips/slotted screw heads; 21.0 cu. in. capacity; Acceptable for use in 2-hour fire rated walls - Prop 65: No
