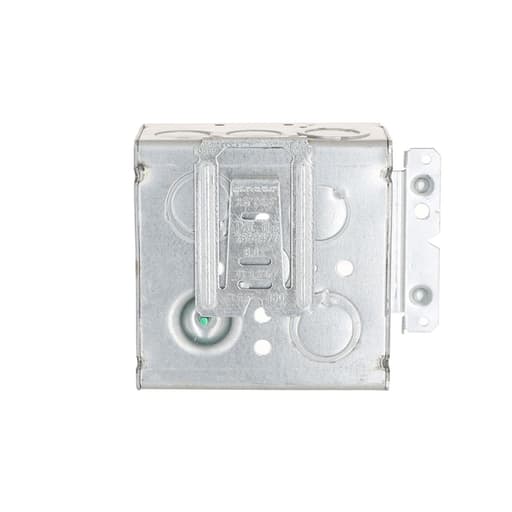

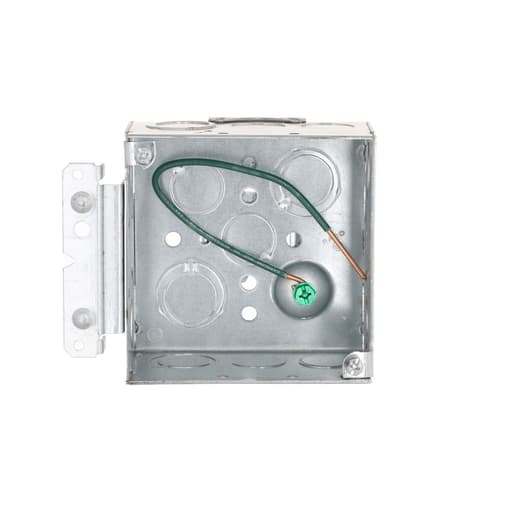

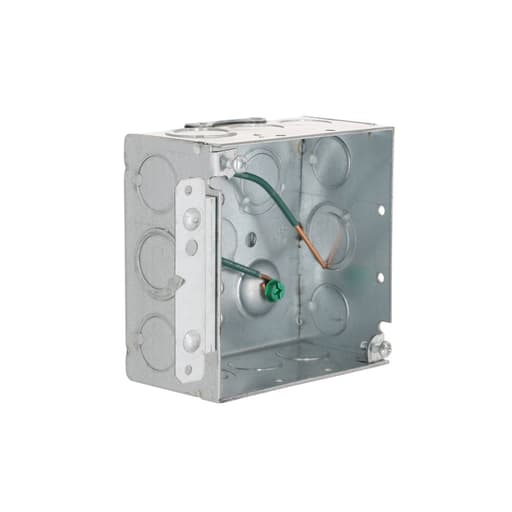

Raco Manufacturing - Raco 232H 4" Square Box, Welded, 2-1/8" Deep, Ten 1/2" KO's and Six TKO's, Raised Ground, 8" #12 Solid Copper Pigtail, UBS, HM Bracket
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 050169500033
Applications - Electrical
Catalog Number - 232H
Color - Gray
Construction - Welded
Packaging
1 ea
EAN
00050169500033
Part #
346859
Catalog #
232H
Commercial reference
232H
12-Digit UPC:
050169500033
Applications:
Electrical
Catalog Number:
232H
Color:
Gray
Construction:
Welded
Country of Origin:
Mexico
Depths:
2-1/8 Inch
ERP_productname:
RACO 232H 4SQ BOX 2-1/8DP H-BRKT PGTAL 1/2-3/4 TKO
Family Brand Name:
RACO
Heights:
4 Inch
Length:
2.676 Inch
Material:
Steel
Number of Gangs:
2 Gang
Shape:
Square
Size:
2-1/8 IN
Type:
4 IN square box
Widths:
4.910 in
SoneparProductId:
SKU_US_58033790
4 in. Square Box, Welded, 2-1/8 in. Deep, Ten 1/2 in. KO's and Six TKO's, Raised Ground, 8 in. #12 Solid Copper Pigtail, UBS, HM Bracket Features: UBS integrated support provides bracing on back of box for wall cavities between 2-1/2 in - 6 in. thickness, H/M; Combination screw heads allow quick installation; Welded construction; Ten 1/2 in. knockouts and six TKO knockouts; UL Listed; 30.3 cu. in. capacity; Raised ground, 8 in. #12 solid copper pigtail; Acceptable in 2-hour fire rated walls - Prop 65: No
