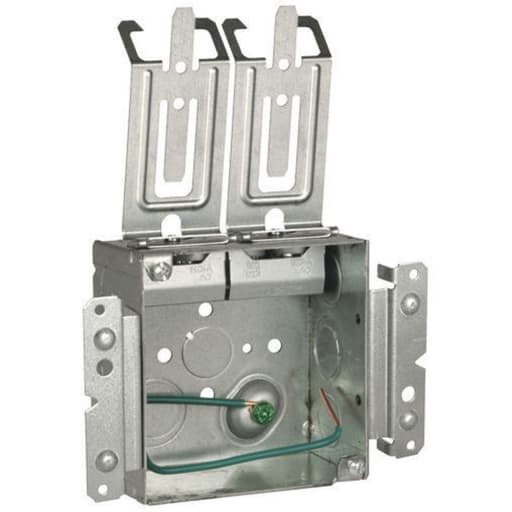

Raco Manufacturing - Raco 244MSCM 4" Square Box, 2-1/8" Deep w/Top Stab-it M-Bracket
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 050169972441
Applications - For any job using flexible armored cable
Catalog Number - 244MSCM
Color - Gray
Depths - 2-1/8 Inch
Packaging
1 ea
EAN
00050169972441
Part #
147315
Catalog #
244MSCM
Commercial reference
244MSCM
12-Digit UPC:
050169972441
Applications:
For any job using flexible armored cable
Catalog Number:
244MSCM
Color:
Gray
Depths:
2-1/8 Inch
ERP_productname:
RACO 244MSCM 4SQ BX 2-1/8DP W/TOP STAB-IT M-BRKT CM
Family Brand Name:
Raco
Heights:
4.17 Inch
Material:
Steel
Sub Brand:
STAB-IT®
Type:
4" Square Box
Widths:
5.86 in
SoneparProductId:
SKU_US_57829490
4 in. Square Box, Welded with (2) STAB-IT® Connectors on Top, 2-1/8 in. Deep, 600V, 8 in. #12 Solid Copper Pigtail, UBS, M Bracket, Cable Management Clips Related Products: 769; 768; 752 - Features: Designed for quick installation of flex, MC, MCI, MCI-A, AC, and HCF Cable; Welded steel construction with \"UBS\" support with preset bend points to work with wall thickness 2-1/2 to 6 in., \"M\" brackets on both side of the box, two STAB-IT® connectors with cable management clips; TKO® Knockouts allow for design and installation flexibility; Supplied with seven 1/2 in. and four 1/2-3/4 in. TKO® knockouts; Combination Phillips/slotted screw heads; 30.3 cu. in. capacity; Includes 8 in. #12 solid copper groudn pigtail; Acceptable for use in 2-hour fire rated walls
