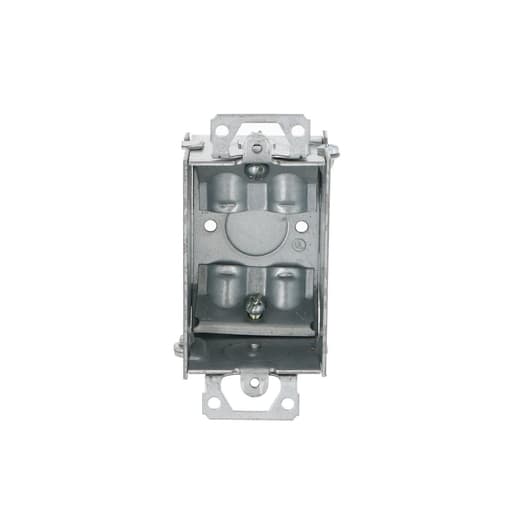

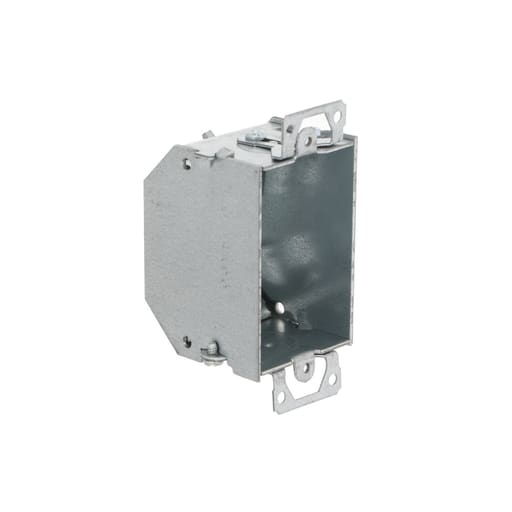

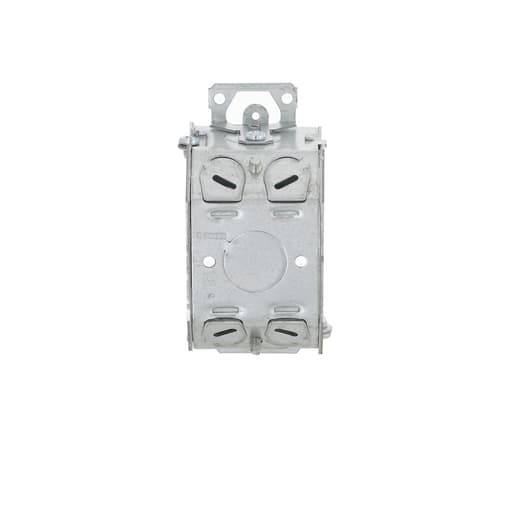

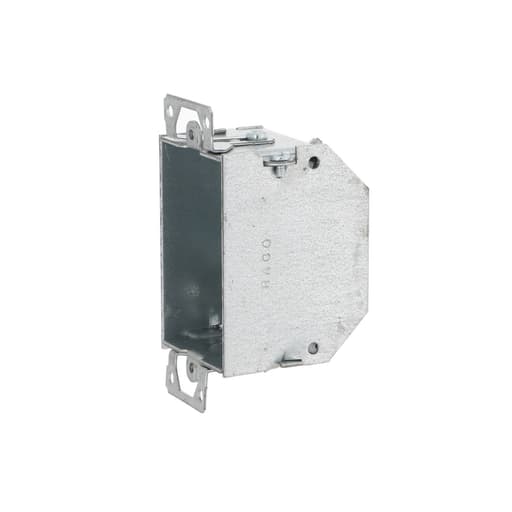

Raco Manufacturing - Raco 471 3" x 2" Switch Box, Gangable, 2-1/4" Deep, One 1/2" KO & NMSC Clamps, Plaster Ears
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 050169004715
Applications - Electrical
Catalog Number - 471
Color - Gray
Construction - Gangable
Packaging
1 ea
EAN
00050169004715
Part #
111717
Catalog #
471
Commercial reference
471
12-Digit UPC:
050169004715
Applications:
Electrical
Catalog Number:
471
Color:
Gray
Construction:
Gangable
Country of Origin:
Mexico
Depths:
2-1/4 Inch
ERP_productname:
RACO 471 2-1/4 DEEP SW BOX EARS NM-CLAMPS 1/2 KO
Family Brand Name:
RACO
Heights:
4.219 Inch
Length:
2-1/4 Inch
Material:
Steel
Number of Gangs:
1 Gang
Size:
2-1/4 IN
Type:
Non-Reversing
Widths:
2 in
SoneparProductId:
SKU_US_57981835
3 in. x 2 in. Switch Box, Gangable, 2-1/4 in. Deep, One 1/2 in. KO & NMSC Clamps, Plaster Ears Features: 3 in. x 2 in., 2-1/4 in. deep; Gangable switch boxes offer the option of constructing a box to hold two or more devices; Beveled corner boxes are designed to prevent the clamp screws from protruding into back wall; L clamps provided for non-metallic sheathed cable (NMSC); Supplied with one 1/2 in. knockout; Plaster ears allow a box to be used in \"old work\" applications; 10.5 cu. in. capacity; Acceptable for use in 2-hour fire rated walls - Prop 65: No
