Raco Manufacturing - Raco 504 3" x 2" Switch Box, Gangable, 2-1/2" Deep, Six 1/2" KO's, TS Bracket

CopyCopy
Raco Manufacturing - Raco 504 3" x 2" Switch Box, Gangable, 2-1/2" Deep, Six 1/2" KO's, TS Bracket

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 050169905043

  • Applications - Electrical

  • Catalog Number - 504

  • Color - Silver

  • Construction - Gangable

Packaging

  • 1 ea

EAN

00050169905043

Part #

213209

Catalog #

504

Commercial reference

504

12-Digit UPC:

050169905043

Applications:

Electrical

Catalog Number:

504

Color:

Silver

Construction:

Gangable

Country of Origin:

Mexico

Depths:

2-1/2 Inch

ERP_productname:

RACO 504 2-1/2D SW BOX W/FLAT BRKT

Family Brand Name:

RACO

Heights:

7 Inch

Length:

2-1/2 Inch

Material:

Steel

Size:

2-1/2 IN

Type:

Non-Reversing

Widths:

2.203 in

SoneparProductId:

SKU_US_57869004

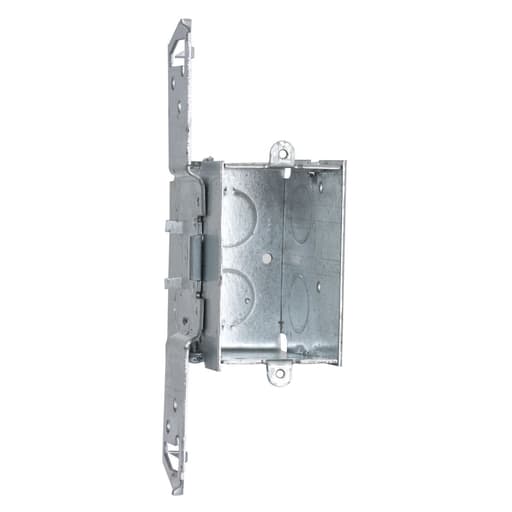

3 in. x 2 in. Switch Box, Gangable, 2-1/2 in. Deep, Six 1/2 in. KO's, TS Bracket Features: 3 in. x 2 in., 2-1/2 in. deep; Includes TS side-mount bracket with gauging tabs and recessed nailing spurs; Gangable switch boxes offer the option of constructing a box to hold two or more devices; With proper fitting can be used for conduit, NMSC, armored, metal clad, flex cable; Supplied with six 1/2 in. knockouts; 12.5 cu. in. capacity; Acceptable for use in 2-hour fire rated walls
