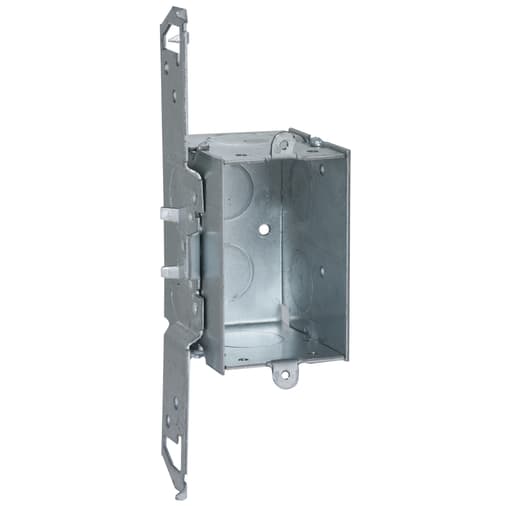

Raco Manufacturing - RACO 505 2-1/2 DEEP SW BOX TS-BRKT
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 050169005057
Applications - Electrical
Catalog Number - 505
Color - Gray
Construction - Gangable
Packaging
1 ea
EAN
00050169005057
Part #
171273
Catalog #
505
Commercial reference
505
12-Digit UPC:
050169005057
Applications:
Electrical
Catalog Number:
505
Color:
Gray
Construction:
Gangable
Country of Origin:
Mexico
Depths:
2-1/2 Inch
ERP_productname:
RACO 505 2-1/2 DEEP SW BOX TS-BRKT 1/2-3/4 KO
Family Brand Name:
RACO
Heights:
7 Inch
Length:
2-1/2 Inch
Material:
Steel
Number of Gangs:
1 Gang
Size:
2-1/2 IN
Type:
Non-Reversing
Widths:
2.203 in
SoneparProductId:
SKU_US_52830178
3 in. x 2 in. Switch Box, Gangable, 2-1/2 in. Deep, Four 1/2 & Two 3/4 in. KO's, TS Bracket Type: Switch Box; Box - Features: 3 in. x 2 in., 2-1/2 in. deep; Includes TS side-mount bracket with gauging tabs and recessed nailing spurs; Gangable switch boxes offer the option of constructing a box to hold two or more devices; With proper fitting can be used for conduit, NMSC, armored, metal clad, flex cable; Supplied with four 1/2 in. and two 3/4 in. knockouts; 12.5 cu. in. capacity; Acceptable for use in 2-hour fire rated walls - Related Products: 2700AJ; 2003; 4714
