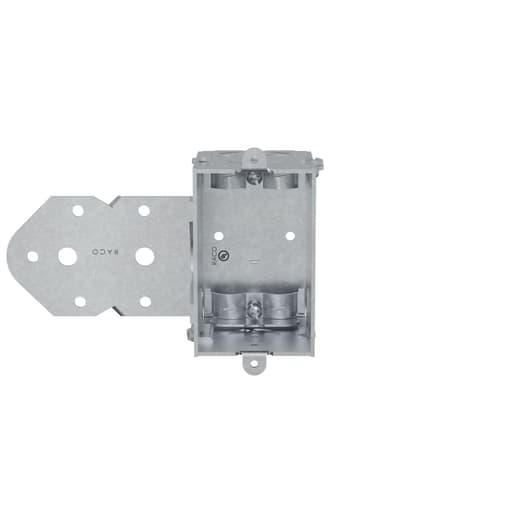

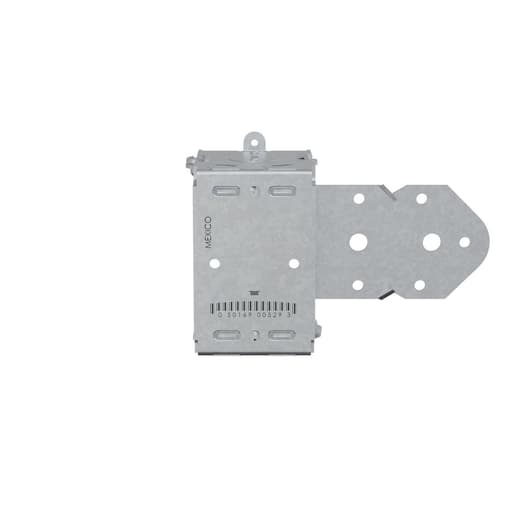

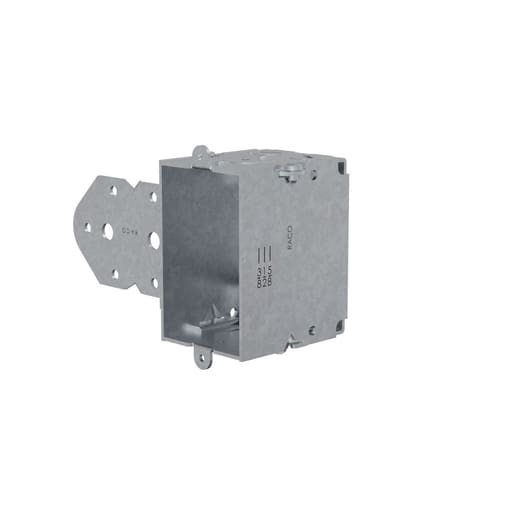

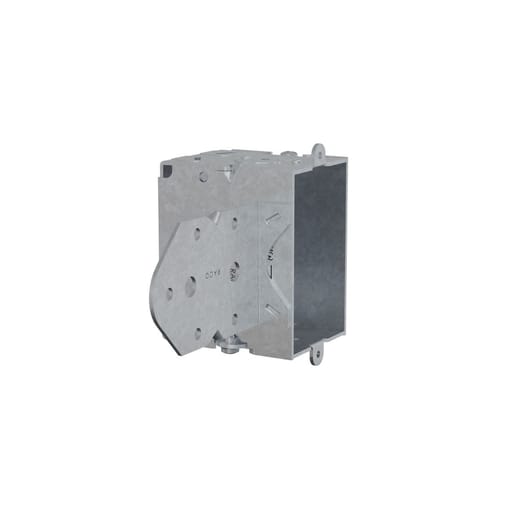

Raco Manufacturing - RACO 529 2 x 3 x 2-1/2 Inch 12.5 In. Pre-Galvanized Steel LB Bracket Mount Gangable Switch Box
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 050169005293
Applications - Electrical
Catalog Number - 529
Color - Gray
Construction - Gangable
Packaging
1 ea
EAN
00050169005293
Part #
171282
Catalog #
529
Commercial reference
529
12-Digit UPC:
050169005293
Applications:
Electrical
Catalog Number:
529
Color:
Gray
Construction:
Gangable
Country of Origin:
Mexico
Depths:
2-1/2 Inch
ERP_productname:
RACO 529 2-1/2 DP SW BOX LB-BRKT NM-CLAMPS 1/2 KO
Family Brand Name:
RACO
Heights:
4.219 Inch
Length:
2-1/2 Inch
Material:
Steel
Number of Gangs:
1 Gang
Size:
2-1/2 IN
Type:
3 IN x 2 IN switch box
Widths:
5.594 in
SoneparProductId:
SKU_US_57903694
3 in. x 2 in. Switch Box, Gangable, 2-1/2 in. Deep, Three 1/2 in. KO's & NMSC Clamps, LB Bracket Prop 65: No - Features: 3 in. x 2 in., 2-1/2 in. deep; Gangable switch boxes offer the option of constructing a box to hold two or more devices; Includes \"LB\" bracket to face mount on front edge of wood stud, 5/8 in. offset to clear narrow door molding; L clamps provided for Nonmetallic Sheathed Cable (NMSC); Supplied with three 1/2 in. knockouts; 12.5 cubic in. capacity; Acceptable for use in 2-hour fire rated walls
