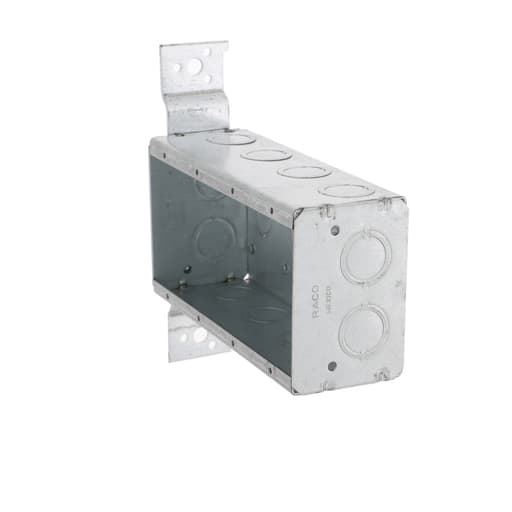

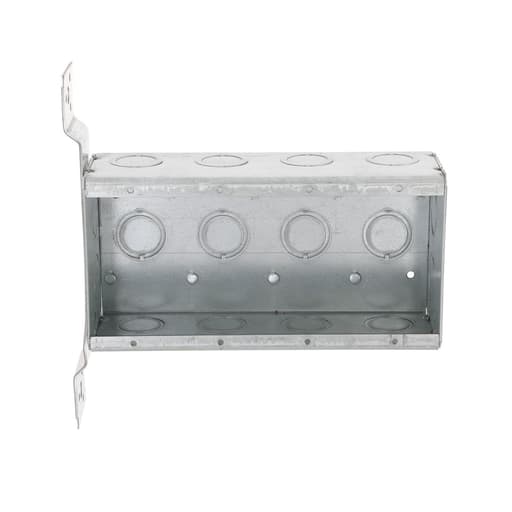

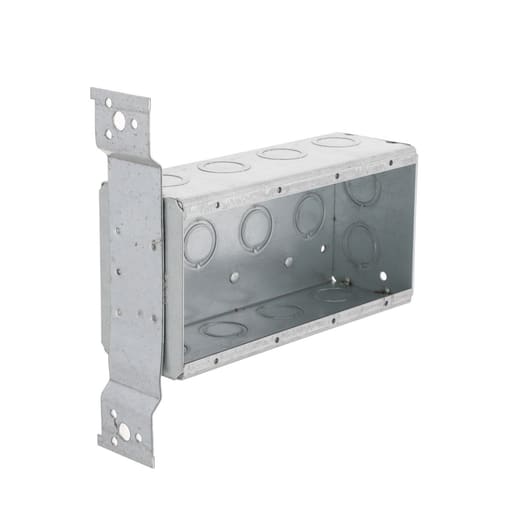

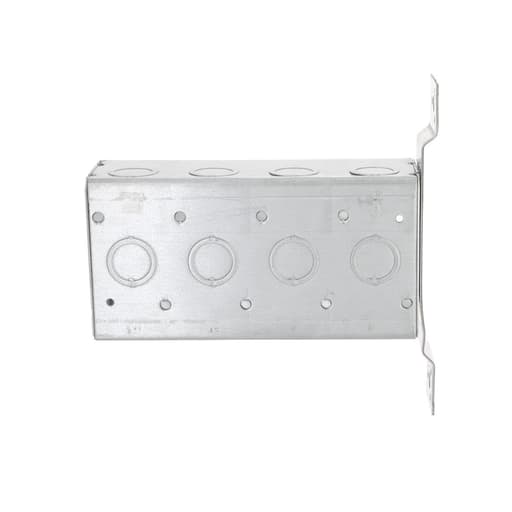

Raco Manufacturing - Raco 687 4-Device Box, 2-1/2" Deep, 1/2" & 3/4" Side Knockouts, Wood/Metal Stud Bracket, Welded
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 050169006870
Applications - Electrical
Catalog Number - 687
Color - Gray
Construction - Welded
Packaging
1 ea
EAN
00050169006870
Part #
274579
Catalog #
687
Commercial reference
687
12-Digit UPC:
050169006870
Applications:
Electrical
Catalog Number:
687
Color:
Gray
Construction:
Welded
Country of Origin:
Mexico
Depths:
2-1/2 Inch
ERP_productname:
RACO 687 4-GANG SW BOX 2-1/2DP FM-BRKT 1/2-3/4 KO
Family Brand Name:
RACO
Heights:
7-5/8 Inch
Length:
2-1/2 Inch
Material:
Steel
Number of Gangs:
4 Gang
Size:
2-1/2 IN
Type:
Multi-device switch box
Widths:
7.625 in
SoneparProductId:
SKU_US_58069028
4-Gang Switch Box, Welded, 2-1/2 in Deep Fourteen 1/2 and Fourteen 3/4 in. KO's Features: Reference the Box Selection section in the front of this catalog for complete description of bracket types and features.; Supplied with sixteen (16) 1/2 and 3/4 in. concentric knockouts; Welded steel construction with \"FM\" bracket - 1/2 in. set back; Standard device spacing with tapped 6-32 holes for devices; Uses Raco 971 voltage partition; 63.5 cu. in. capacity - Prop 65: No
