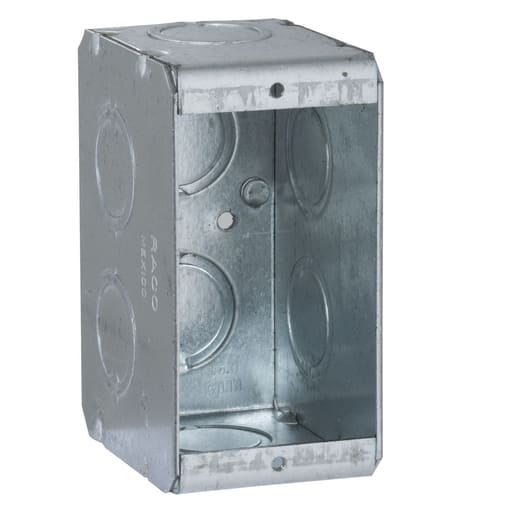

Raco Manufacturing - Raco 690 Masonry Box, 1 Device, Non-gangable, 2-1/2" Deep, 1/2" & 3/4" End Knockouts
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 050169006900
Applications - Electrical
Catalog Number - 690
Color - Gray
Construction - Nongangable
Packaging
1 ea
EAN
00050169006900
Part #
214412
Catalog #
690
Commercial reference
690
12-Digit UPC:
050169006900
Applications:
Electrical
Catalog Number:
690
Color:
Gray
Construction:
Nongangable
Country of Origin:
Mexico
Depths:
2-1/2 Inch
ERP_productname:
RACO 690 1-GANG MASONRY BOX 2-1/2 DEEP 1/2-3/4 KO
Family Brand Name:
RACO
Heights:
3-3/4 Inch
Length:
2-1/2 Inch
Material:
Steel
Number of Gangs:
1 Gang
Size:
2-1/2 IN
Sub Brand:
RACO
Type:
Non-Reversing
Widths:
1.969 in
SoneparProductId:
SKU_US_57802792
1-Gang Masonry Box, Nongangable, 2-1/2 in. Deep, Eight Concentric KO.s Features: Rugged welded design does not fall apart during construction.; Available from one to six gang configurations in both 2-1/2\" and 3-1/2\" depths.; Rectangular shape fits square cuts in block.; Large volume design allows for additional work room inside the box.; Standard 1/2\" and 3/4\" concentric knockouts.; Device ears inside the box prevent mortar from getting in the device holes.; Steel voltage partition #971 fits all 2-1/2\" or 3-1/2\" depths.; Standard wall plates can be used.; Supplied with eight 1/2 & 3/4 in. concentric knockouts; Welded steel construction; Standard device spacing with tapped 6-32 holes for devices; 16 cu. in. capacity; For 4 in. block walls - Prop 65: No
