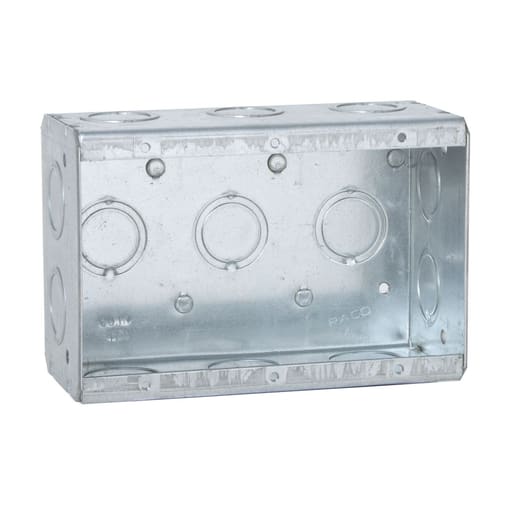

Raco Manufacturing - Raco 692 Masonry Box, 3 Device, Non-gangable, 2-1/2" Deep, 1/2" & 3/4" End Knockouts
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 050169006924
Applications - Electrical
Catalog Number - 692
Color - Gray
Construction - Nongangable
Packaging
1 ea
EAN
00050169006924
Part #
214434
Catalog #
692
Commercial reference
692
12-Digit UPC:
050169006924
Applications:
Electrical
Catalog Number:
692
Color:
Gray
Construction:
Nongangable
Country of Origin:
Mexico
Depths:
2-1/2 Inch
ERP_productname:
RACO 692 3-GANG MASONRY BOX 2-1/2 DEEP 1/2-3/4 KO
Family Brand Name:
RACO
Heights:
3-3/4 Inch
Length:
2-1/2 Inch
Material:
Steel
Number of Gangs:
3 Gang
Size:
2-1/2 IN
Type:
Non-Reversing
Widths:
5.594 in
SoneparProductId:
SKU_US_57803008
3-Gang Masonry Box, Nongangable, 2-1/2 in. Deep, Thirteen Concentric KO.s Features: Rugged welded design does not fall apart during construction.; Available from one to six gang configurations in both 2-1/2\" and 3-1/2\" depths.; Rectangular shape fits square cuts in block.; Large volume design allows for additional work room inside the box.; Standard 1/2\" and 3/4\" concentric knockouts.; Device ears inside the box prevent mortar from getting in the device holes.; Steel voltage partition #971 fits all 2-1/2\" or 3-1/2\" depths.; Standard wall plates can be used.; Device ears are formed inside the box; Rectangular shape neatly fits square cuts in concrete block, 3-3/4 in. x 5-19/32 in; 47.8 cu. in. capacity; UL listed - Prop 65: No
