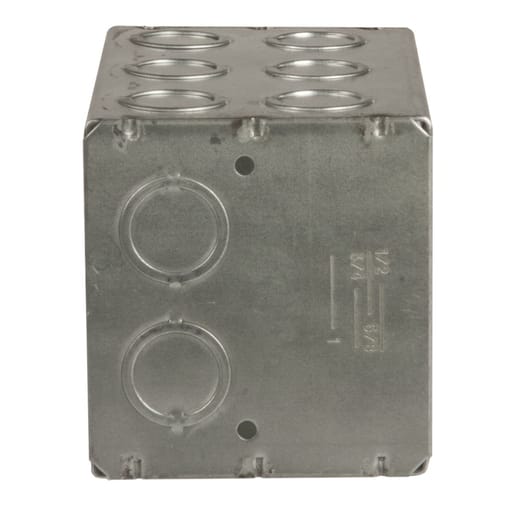

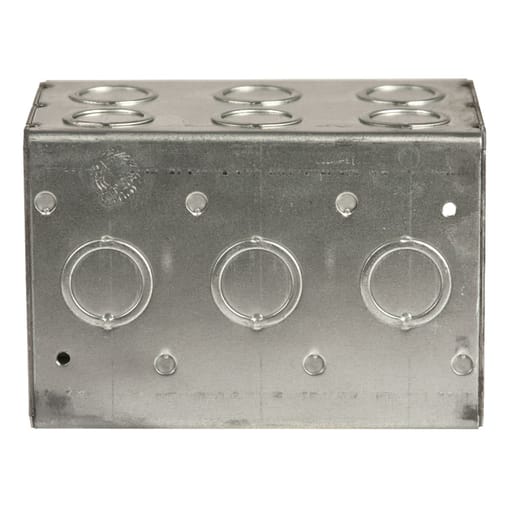

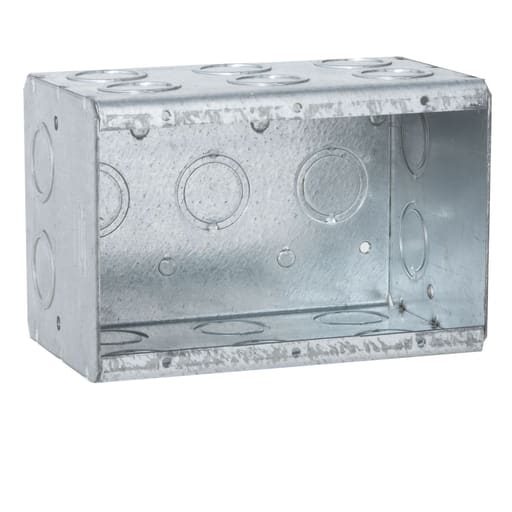

Raco Manufacturing - Raco 697 Masonry Box, 3 Device, Non-gangable, 3-1/2" Deep, 1/2" & 3/4" End Knockouts

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 050169006979

  • Applications - Electrical

  • Catalog Number - 697

  • Color - Gray

  • Construction - Nongangable

Packaging

  • 1 ea

EAN

00050169006979

Part #

214468

Catalog #

697

Commercial reference

697

12-Digit UPC:

050169006979

Applications:

Electrical

Catalog Number:

697

Color:

Gray

Construction:

Nongangable

Country of Origin:

Mexico

Depths:

3-1/2 Inch

ERP_productname:

RACO 697 MASNRY BOX

Family Brand Name:

RACO

Heights:

3-3/4 Inch

Length:

3-1/2 Inch

Material:

Steel

Number of Gangs:

3 Gang

Size:

3-1/2 IN

Type:

Non-Reversing

Widths:

5.594 in

SoneparProductId:

SKU_US_57803051

3-Gang Masonry Box, Nongangable, 3-1/2 in. Deep, Nineteen Concentric KO.s Features: Rugged welded design does not fall apart during construction.; Available from one to six gang configurations in both 2-1/2\" and 3-1/2\" depths.; Rectangular shape fits square cuts in block.; Large volume design allows for additional work room inside the box.; Standard 1/2\" and 3/4\" concentric knockouts.; Device ears inside the box prevent mortar from getting in the device holes.; Steel voltage partition #971 fits all 2-1/2\" or 3-1/2\" depths.; Standard wall plates can be used.; Supplied with nineteen (19) 1/2 & 3/4 in. concentric knockouts; Welded steel construction; Standard device spacing with tapped 6-32 holes for devices; 67.3 cu. in. capacity; For 6, 8, and 10 in. block walls - Prop 65: No
