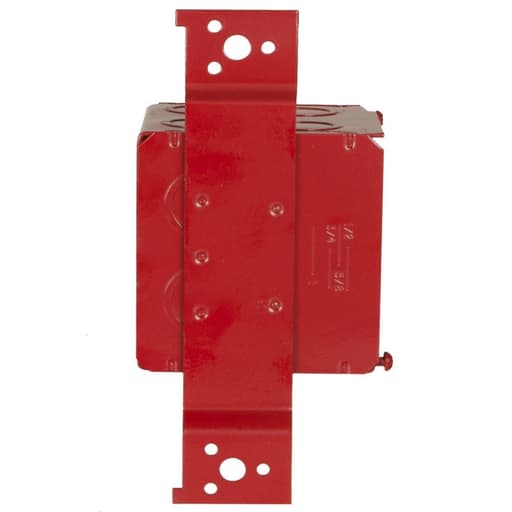

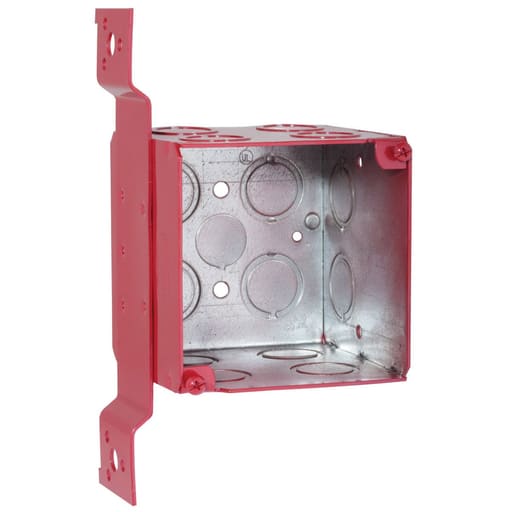

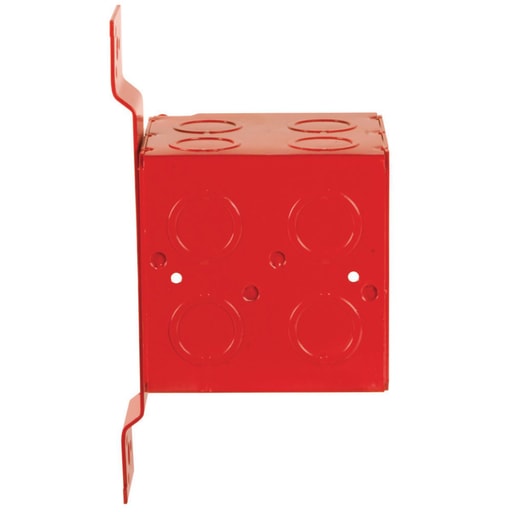

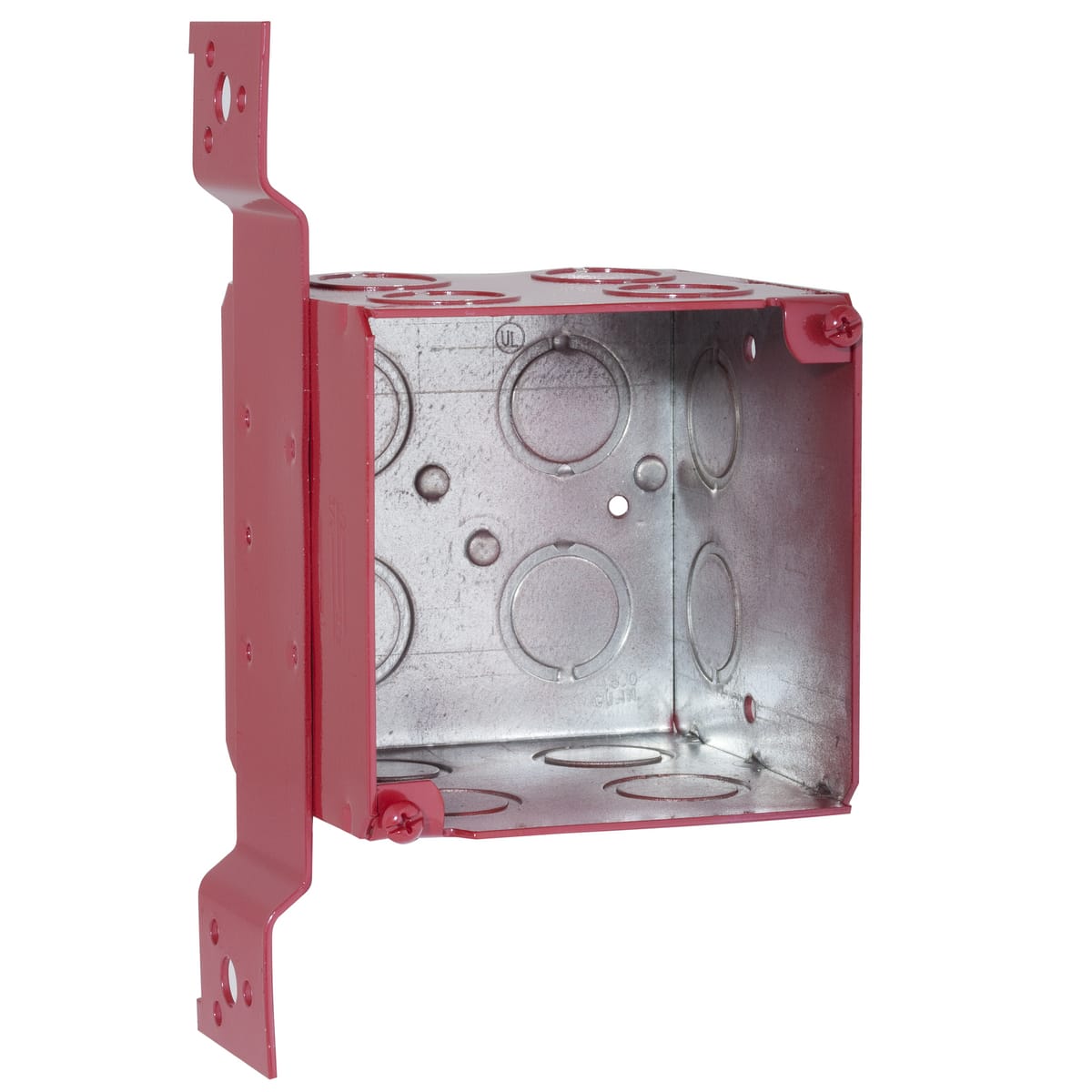

Raco Manufacturing - Raco 911-1 3-3/4" Life Safety Square Box, Welded, 3-1/2" Deep, Fourteen 1/2" & 3/4" Concentric KO's & One 1/2" KO, FM Bracket, Red
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 050169091111
Applications - Electrical
Catalog Number - 911-1
Color - Red
Construction - Welded
Packaging
10 ea
EAN
00050169091111
Part #
404438
Catalog #
911-1
Commercial reference
911-1
12-Digit UPC:
050169091111
Applications:
Electrical
Catalog Number:
911-1
Color:
Red
Construction:
Welded
Country of Origin:
Mexico
Depths:
3-1/2 Inch
ERP_productname:
RACO 911-1 3-3/4BX 3-1/2DP FM-BRKT 1/2-3/4 KO - RED
Family Brand Name:
RACO
Heights:
7-5/8 Inch
Length:
3-1/2 Inch
Material:
Steel
Shape:
Square
Size:
3-1/2 IN
Type:
4 IN square box red
Widths:
4.125 in
SoneparProductId:
SKU_US_58157668
3-3/4 in. Life Safety Square Box, Welded, 3-1/2 in. Deep, Fourteen 1/2 & 3/4 in. Concentric KO's & One 1/2 in. KO, FM Bracket, Red Features: Welded steel construction with \"FM\" bracket that mounts on flat side of stud; 3-3/4 in. square x 3-1.2 in. deep; 3-3/4 in. opening in wall allows for margin of error when using a 4 in. square cover; Accepts 4 in. square covers and mud rings; Painted red for dedicated life safety alarm systems; Large capacity design accommodates oversized devices; Supplied with fourteen 1/2-3/4 in. Concentric KO's and one 1/2 in. KO; 40.5 cu. in. capacity; Acceptable for use in 2-hour fire rated walls
