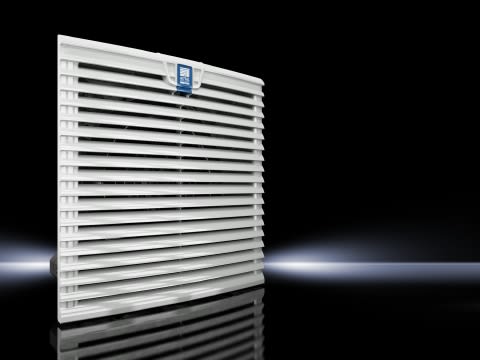

Rittal Corp. - Rittal 3238110 115 VAC 50/60 Hz 39 CFM NEMA 4X Light Gray Diagonal Climate Control Filter Fan
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 639889858275
Amperage - 60 Amp
Applications - Climate Control Solutions
Catalog Number - 3238110
Color - RAL 7035
Packaging
1 ea
EAN
00639889858275
Part #
282448
Catalog #
3238110
Commercial reference
3238110
12-Digit UPC:
639889858275
Amperage:
60 Amp
Applications:
Climate Control Solutions
Catalog Number:
3238110
Color:
RAL 7035
ERP_productname:
RITT 3238110 115V 39CFM FILTER FAN
Family Brand Name:
Rittal
Heights:
1485 mm
Motor Type:
Diagonal Self-Starting Shaded Pole AC
Number of Phases:
1 Phase
Size:
5.8 (H) x 5.8 (W) x 0.63 (D) IN
Type:
Filter Fan Unit
Voltage:
115 Volt
Widths:
1485 mm
SoneparProductId:
SKU_US_26011099
Complete fan unit for tool-free mounting on surfaces. Air throughput from 20 - 900 m./h, protection category IP 54 as standard. Note: A folded filter can optionally be used to increase the air throughput (see characteristic curve). This can be used with both the filter & roof-mounted fans and the exhaust filters; For the 3237.XXX filter fan, the electrical connection is made via 2 individual wires (length approx. 300 mm) on the unit, for all other filter fans, its made via a spring-loaded terminal - Supply Includes: Complete unit ready to install, including fleece filter mat
