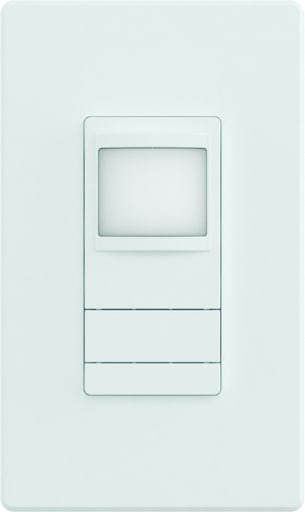

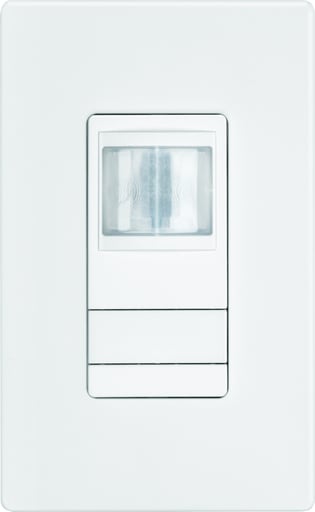

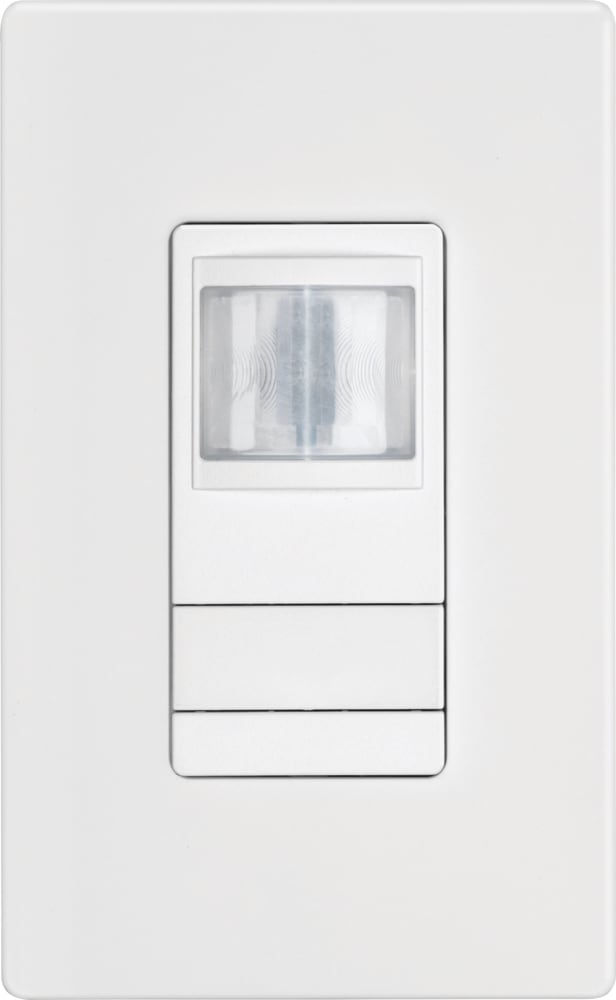

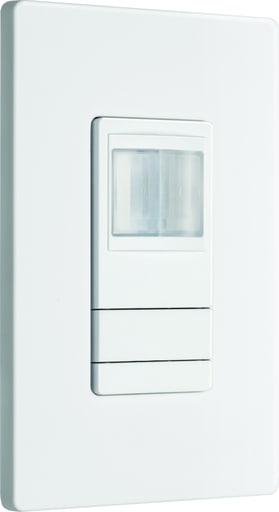

Sensor Switch - LIT WSXA WH Switch

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 194995191499

  • Applications - Behavioral Health,Education,Government,Healthcare,Hospitality,House Of Worship,Offices & Banks,Retail,Sports And Recreation

  • Catalog Number - WSXA

  • Color - White

  • Country of Origin - Mexico,Mexico

Packaging

  • 1 ea

EAN

00194994625902

Part #

212254

Catalog #

WSXA-WH

Commercial reference

WSXA-WH

12-Digit UPC:

194995191499

Applications:

Behavioral Health,Education,Government,Healthcare,Hospitality,House Of Worship,Offices & Banks,Retail,Sports And Recreation

Catalog Number:

WSXA

Color:

White

Country of Origin:

Mexico,Mexico

ERP_productname:

LITH WSXA WH

Environment:

Indoor

Family Brand Name:

Acuity Brands Lighting

Finish:

Matte

Heights:

2.74 Inch

Length:

1.63 Inch

Mounting Type:

Surface

Product Type:

Switch

Size:

1.63x1.68x2.74 IN

Type:

Switch

Voltage:

120 Volt

Widths:

1.68 in

SoneparProductId:

SKU_US_315801484

All WSXA Family sensors have a stylish low profile appearance, soft-click buttons, and provide small motion detection up to 20 ft (6.10 m), making them perfect for private offices, private restrooms, closets, copy rooms, or any other small enclosed space Application: Behavioral Health; Education; Government; Healthcare; Hospitality; House of Worship; Offices & Banks; Retail; Sports and Recreation - Features: WIRING: WSXA Family sensors have a patent-pending wiring method that enables them to function either with or without a neutral connection; COMPATIBILITY: Compatible w/LEDs, electronic & magnetic ballasts, CFLs, & incandescents; DIMMING: Compatible with 0-10V dimming luminaries; RATINGS: Energy Management Equipment, UL916 (E167435); PROTECTION: Mis-wire Protection - interchangeable line and load wires prevent damage to device if line voltage is mis-wired to 0-10V wires; POWER: Device accommodates powering over ground or neutral connection (patent pending) Ultra-low current leakage (<0.5 mA) when connected via ground; PROGRAMMABLE: Push-button programmable without removing cover plate - adjustable time delays & operating modes; MOUNTING: Single-Gang Box; WARRANTY: 5-year limited warranty - Mounting: Surface - Standard: cUL; C-UL-USCA Title 24; ROHS
