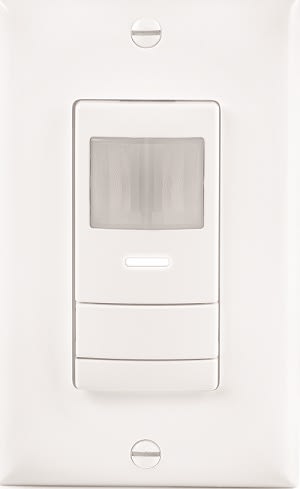

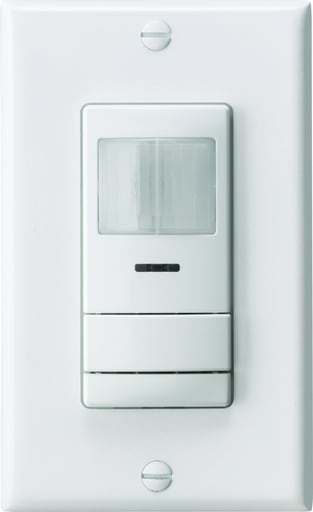

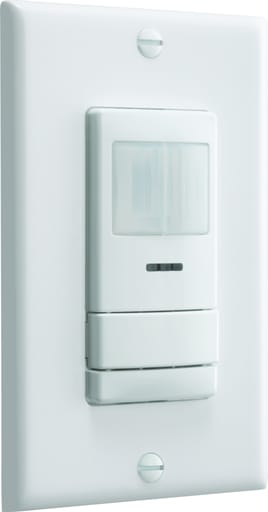

Sensor Switch - Lithonia Lighting WSX WH 120/277 VAC 1/4 Hp White 1-Gang Wall Switch Occupancy Sensor

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 753573767527

  • Applications - For Commercial and Residential Lighting Control Applications, Private Offices, Private Rest Rooms, Closets, Copy Rooms, or Any other Small Enclosed Space

  • Catalog Number - WSX WH

  • Color - White

  • Country of Origin - Mexico,Mexico

Packaging

  • 1 ea

EAN

00753573767527

Part #

116640

Catalog #

WSXWH

Commercial reference

WSXWH

12-Digit UPC:

753573767527

Applications:

For Commercial and Residential Lighting Control Applications, Private Offices, Private Rest Rooms, Closets, Copy Rooms, or Any other Small Enclosed Space

Catalog Number:

WSX WH

Color:

White

Country of Origin:

Mexico,Mexico

ERP_productname:

SENS WSXWH WALL SWITCH SENSOR PIR WHITE

Environment:

Indoor

Family Brand Name:

Lithonia Lighting

Finish:

Gloss

Heights:

2.74 Inch

Length:

1.63 Inch

Material:

Plastic

Mounting Type:

1-Gang Switch Box, Wall

Sensing Range:

180 degrees

Sensor Type:

Passive Infrared

Shape:

Rectangle

Sub Brand:

Contractor Select

Type:

Single Relay, Auto On (Default)

Voltage:

120-277 VAC

Widths:

1.680 in

SoneparProductId:

SKU_US_25695194

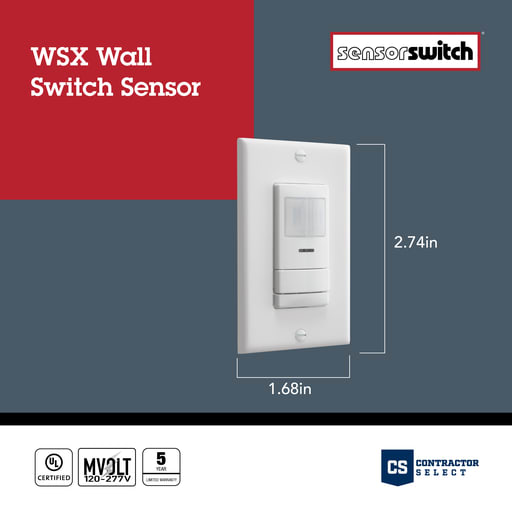

Wall switch decorator sensor with convertible neutral/no neutral wiring, White, SKU - 216RF4 Applications: Education; Government; Healthcare; Hospitality; House of Worship; Manufacturing; Offices & Banks; Retail; Sports and Recreation; Warehouses - Features: WIRING: Easy to install while helping to aid in energy code compliance, the WSX has a patented wiring method that enables them to function with or without a neutral connection; MOTION DETECTION: Small motion detection up to 20 feet (6.10 m); GROUNDING: Self-grounding mounting strap; RATINGS: Energy Management Equipment, UL916 (E167435); RoHS compliant; WIRING: Line power and load wires are interchangeable, making it impossible to wire backwards; COMPATIBILITY: Compatible with LEDs, electronic and magnetic ballasts, CFLs, and incandescents; CONNECTIONS: Device accommodates powering over ground or neutral connection; CONSTRUCTION: Vandal resistant lens; WARRANTY: 5-Year Limited Warranty; DIMENSIONS: 2.74 in. H x 1.68 in. W x 1.63 in. D (70mm x 43mm x 41mm) - does not include ground strap - Standards: cUL; UL
