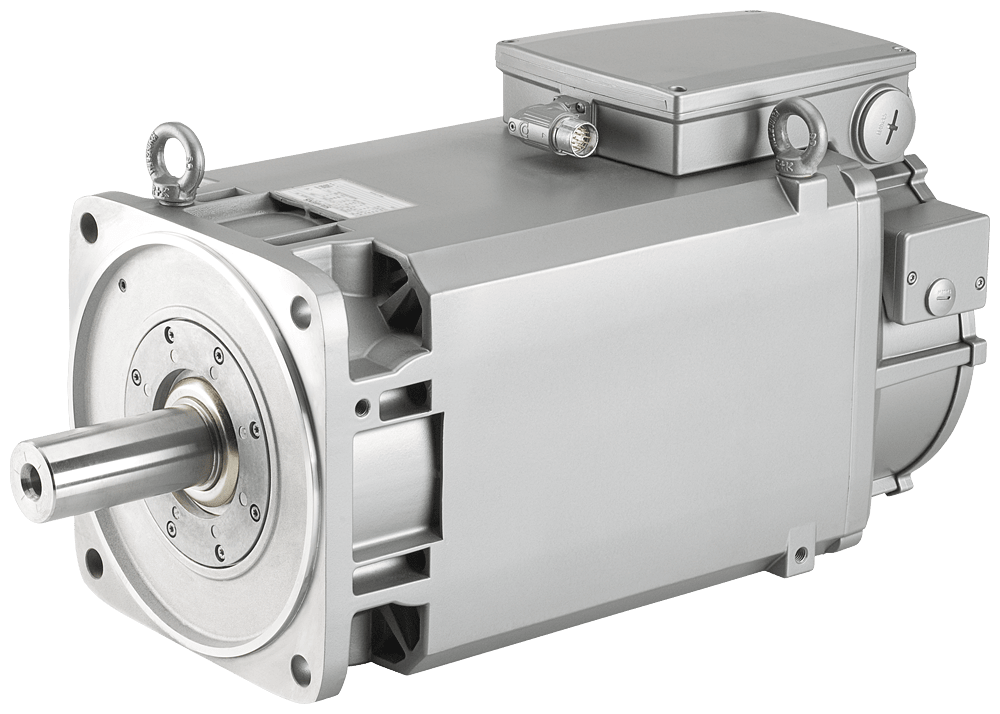

Siemens - S-A 1PH81031JD132GA2 COMPACT ASYNCH

SIMOTICS M compact asynchronous motor 1000 rpm 3.7 kW 35 Nm 10 A 333 V 1150 rpm4.3 kW 36 Nm 10 A 380 V 1350 rpm 4.7 kW 33 Nm 9.7 A 423 V 1500 rpm 5.2 kW 33 Nm9.7 A 470 V forced ventilation direction of air flow NDE -- DE IP55 degree of protection Incremental encoder HTL 2048 S/R (encoder HTL2048S/R) With temperaturesensor Pt1000 Design IM B35 (IM V15. (IM V35) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING STANDARD. VIBRATION SEVERITY GRADE R/A. SHAFT AND FLANGE ACCURACY R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
