Siemens - S-A E1SCED63B125 ENCL1S BRKR CED6 3
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783643289185
Catalog Number - E1SCED63B125
ERP_productname - SIEM E1SCED63B125 ENCL1S BRKR CED6 3P 600V 125A
Enclosure - TYPE 1S
Family Brand Name - Siemens
Packaging
1 ea
EAN
00783643289185
Part #
102500
Catalog #
E1SCED63B125
Commercial reference
E1SCED63B125
12-Digit UPC:
783643289185
Catalog Number:
E1SCED63B125
ERP_productname:
SIEM E1SCED63B125 ENCL1S BRKR CED6 3P 600V 125A
Enclosure:
TYPE 1S
Family Brand Name:
Siemens
Frame:
ED
Heights:
7 Inch
Interrupt Rating:
100 kAIC
Length:
24 Inch
Number of Poles:
3 Pole
Sub Brand:
SENTRON
Trip Type:
THERMAL MAGNETIC
Type:
ED6
Voltage:
600 Volt
Widths:
9.000
SoneparProductId:
SKU_US_315847250

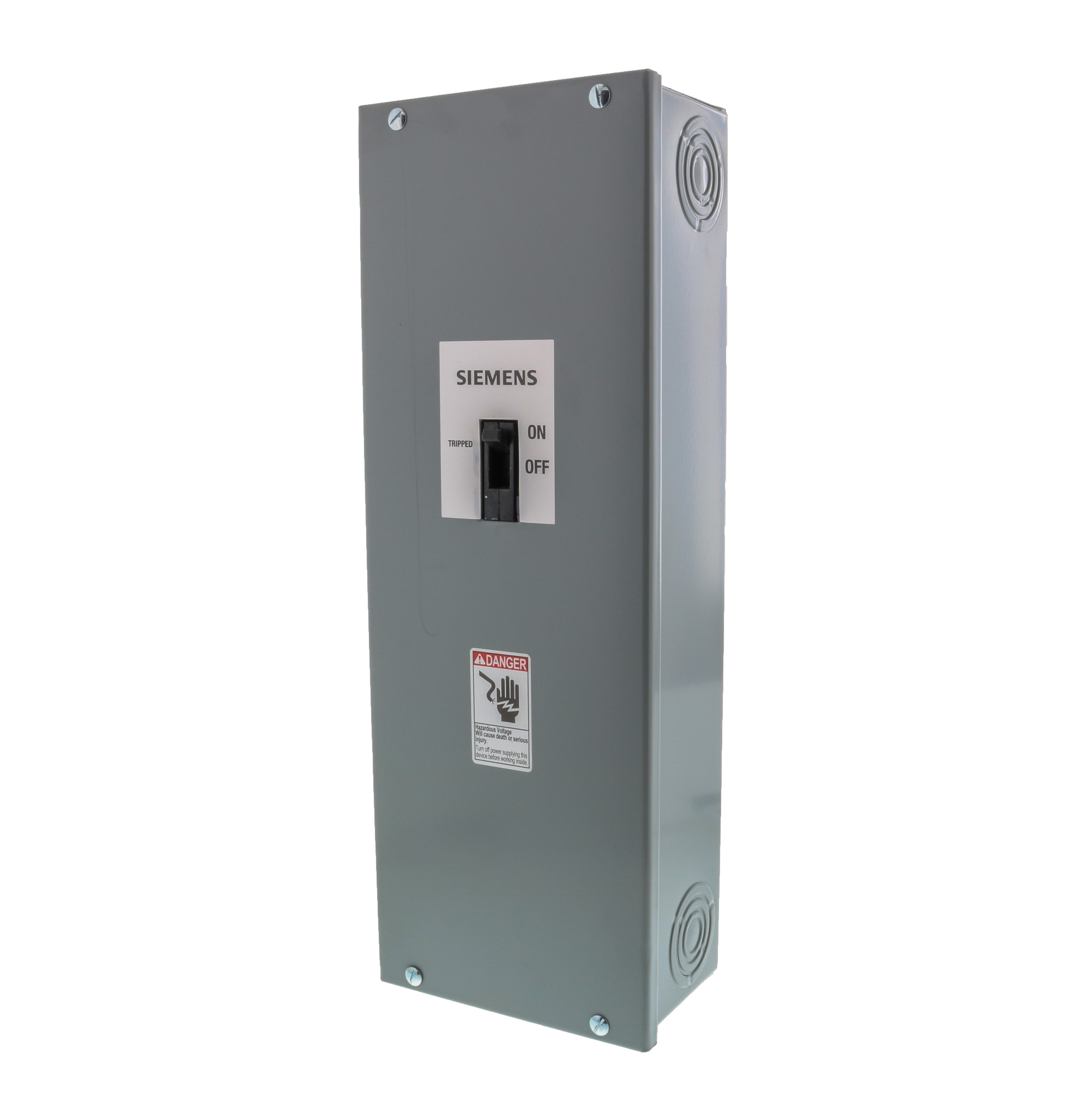

SIEMENS LOW VOLTAGE ENCLOSED SENTRON MOLDED CASE CIRCUIT BREAKER (ASSEMBLED) WITH THERMAL - MAGNETIC TRIP UNIT. 125A 3-POLE 600V STANDARD 40 DEG C BREAKER ED FRAME WITH FUSELESS CURRENT LIMITING BREAKING CAPACITY (CED63B125). NON-INTERCHANGEABLE TRIP UNIT. NEMA TYPE 1 ENCLOSURE SURFACE MOUNTED (CED6N1S) WITH NEUTRAL (W53045). INCLUDES LINE AND LOAD SIDE LUGS (TA1E6125) WIRE RANGE 3 - 3/0AWG (CU) / 1 - 2/0AWG (AL). ENCLOSURE DIMENSIONS (W x H x D) IN 7.59 x 21.47 x 5.11.
