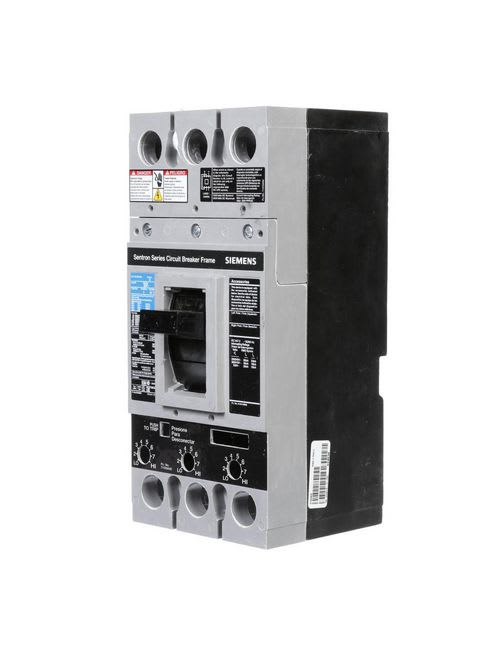

Siemens - SIEM FD63B225L BREAKER FD 3P 225A 600V 22KA ASSY LUGS
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783643005341
Actuator - Varying
Amperage - 225 Amp
Applications - Standard 40C Breaker
Catalog Number - FD63B225L
Packaging
1 ea
EAN
00783643005341
Part #
222947
Catalog #
FD63B225L
Commercial reference
FD63B225L
12-Digit UPC:
783643005341
Actuator:
Varying
Amperage:
225 Amp
Applications:
Standard 40C Breaker
Catalog Number:
FD63B225L
ERP_productname:
SIEM FD63B225L BREAKER FD 3P 225A 600V 22KA ASSY LUGS
Enclosure:
Varying
Family Brand Name:
Siemens
Frame:
FD
Heights:
11 Inch
Interrupt Rating:
22 kAIC
Length:
7
Number of Poles:
3 Pole
Sub Brand:
Sentron
Tc Connection:
Line/Load lugs installed
Trip Type:
Thermal-Magnetic
Type:
FD6
Voltage:
600 Volt
Widths:
6.000
SoneparProductId:
SKU_US_73683568
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH STANDARD BREAKING CAPACITY. 225A 3-POLE (22KAIC AT 600V) (35KAIC AT 480V). INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA1FD350A) WIRE RANGE 6AWG - 350KCMIL (CU) / 4AWG - 350KCMIL (AL). DIMENSIONS (W x H x D) IN 4.50 x 9.5 x 4.00.
