Siemens - Siemens 3RH29111FA40 AUX. SWITCH 4NO FO
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 662643909937
Amperage - 10 Amp
Applications - For Contactor Relay and Power Contactor
Catalog Number - 3RH29111FA40
Country of Origin - Czech Republic
Packaging
1 ea
EAN
00662643909937
Part #
416250
Catalog #
3RH29111FA40
Commercial reference
3RH29111FA40
12-Digit UPC:
662643909937
Amperage:
10 Amp
Applications:
For Contactor Relay and Power Contactor
Catalog Number:
3RH29111FA40
Country of Origin:
Czech Republic
ERP_productname:
SIEM3 3RH29111FA40 AFINITAS AUX. SWITCH 4NO FOR S00 & S0 SCREW FRONT MOUNT
Enclosure:
IP20
Family Brand Name:
Siemens
Heights:
1.7 Inch
Length:
2-1/4 Inch
Mounting Type:
Front, Snap-On
Number of Poles:
4 Pole
Size:
S00, S0
Sub Brand:
Sirius
Voltage:
690 Volt
Widths:
1.970 in

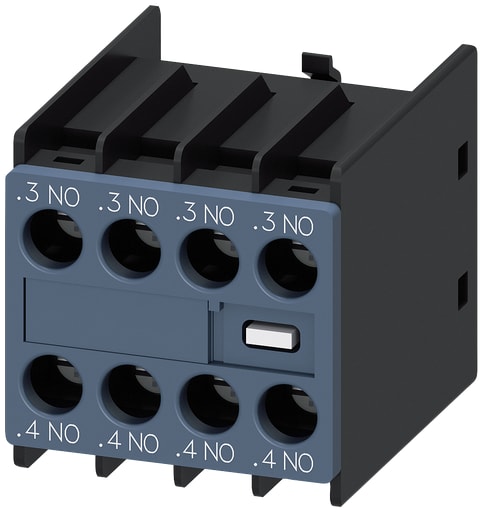

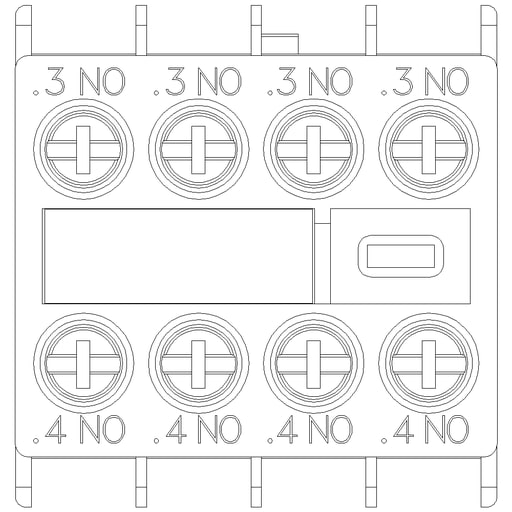

Auxiliary switch on the front, 4 NO Current path 1 NO, 1 NO, 1 NO, 1 NO for 3RH and 3RT screw terminal .3/.4, .3/.4, .3/.4, .3/.4 auxiliary switch SIRIUS 3RH29 for the expansion of auxiliary contacts in the control circuit. The front-mounted 3RH29 auxiliary switches can be installed on 3RT2 contactors and 3RH2 contactor relays without the need for tools, regardless of size. The 3RH19/3RH29 auxiliary switches are available as versions for front or lateral mounting, with up to four instantaneous contacts or up to two leading NO and NC contacts. The auxiliary switches can be designed as positively driven contacts in 3RH contactor relays or also as mirror contacts in the case of 3RT power contactors. All of them are available with screw terminal and spring-type terminal. Simple, efficient and always up to date - SIRIUS modular system.
