Siemens - Siemens 3RH29111HA10 230 Volt 6 Amp 1NO Screw Terminal Contactor Auxiliary Switch Block
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 662643910056
Catalog Number - 3RH29111HA10
Conductor Size - 20-16 AWG/18-14 AWG
Country of Origin - Czech Republic
ERP_productname - SIEM 3RH29111HA10 AUX. SWITCH 1NO FOR S0 SCREW
Packaging
1 ea
EAN
00662643910056
Part #
115550
Catalog #
3RH29111HA10
Commercial reference
3RH29111HA10
12-Digit UPC:
662643910056
Catalog Number:
3RH29111HA10
Conductor Size:
20-16 AWG/18-14 AWG
Country of Origin:
Czech Republic
ERP_productname:
SIEM 3RH29111HA10 AUX. SWITCH 1NO FOR S0 SCREW
Family Brand Name:
Siemens
Heights:
1.78 Inch
Length:
2.56 Inch
Mounting Type:
Snap-On
Size:
S00, S0, S2, S3
Sub Brand:
Sirius
Voltage:
690 Volt Insulation
Widths:
2.170 in
SoneparProductId:
SKU_US_26088847

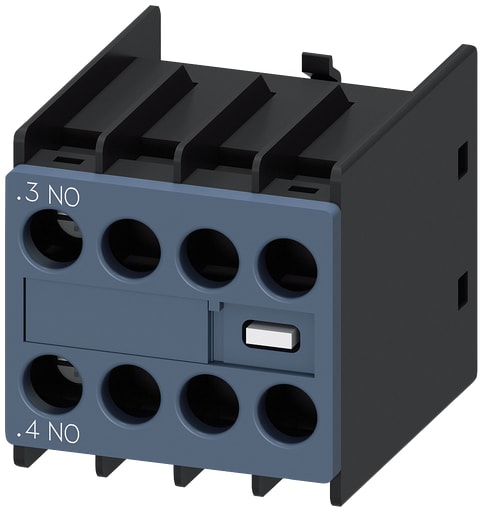

Auxiliary switch on the front, 1 NO Current path 1 NO for 3RH and 3RT screw terminal .3/.4 auxiliary switch SIRIUS 3RH29 for the expansion of auxiliary contacts in the control circuit. The front-mounted 3RH29 auxiliary switches can be installed on 3RT2 contactors and 3RH2 contactor relays without the need for tools, regardless of size. The 3RH19/3RH29 auxiliary switches are available as versions for front or lateral mounting, with up to four instantaneous contacts or up to two leading NO and NC contacts. The auxiliary switches can be designed as positively driven contacts in 3RH contactor relays or also as mirror contacts in the case of 3RT power contactors. All of them are available with screw terminal and spring-type terminal. Simple, efficient and always up to date - SIRIUS modular system.
