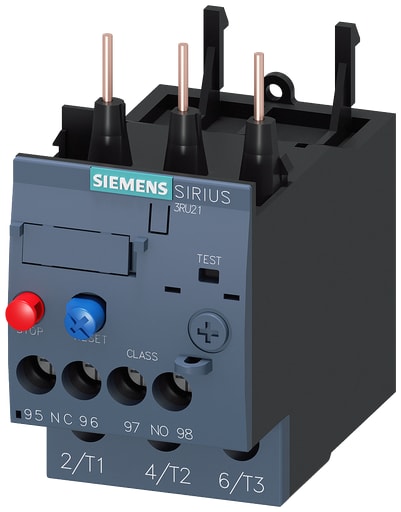

Siemens - Siemens 3RU21264AB0 690 VAC 11 to 16 Amp 3-Pole 1NO 1NC Thermal Overload Relay
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 662643919196
Amperage - 11-16 Amp
Applications - Protection of three phase and single phase AC & DC motors
Catalog Number - 3RU21264AB0
Class - Class 10
Packaging
1 ea
EAN
00662643919196
Part #
225635
Catalog #
3RU21264AB0
Commercial reference
3RU21264AB0
12-Digit UPC:
662643919196
Amperage:
11-16 Amp
Applications:
Protection of three phase and single phase AC & DC motors
Catalog Number:
3RU21264AB0
Class:
Class 10
Country of Origin:
Germany
ERP_productname:
SIEM 3RU21264AB0 OVERLOAD RELAY CL10 S0 11-16A SCREW
Family Brand Name:
Siemens
Heights:
4.02 Inch
Length:
4.02 Inch
Number of Poles:
3 Pole
Sub Brand:
Sirius
Type:
3RU2 thermal overload relay
Widths:
1.930 in
SoneparProductId:
SKU_US_25914437
Overload relay 11...16 A Thermal For motor protection Size S0, Class 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset thermal overload relay SIRIUS 3RU2 for inverse-time delayed protection of loads with normal starting against excessive temperature rises due to overload or phase failure. This series is particularly flexible and cost-effective. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course. Can be supplied with different setting ranges of the overload release. They are available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection, as well as for stand-alone installation. The accessories consistently fit all sizes from S00 to S3. Simple, efficient and always up to date - SIRIUS modular system.
