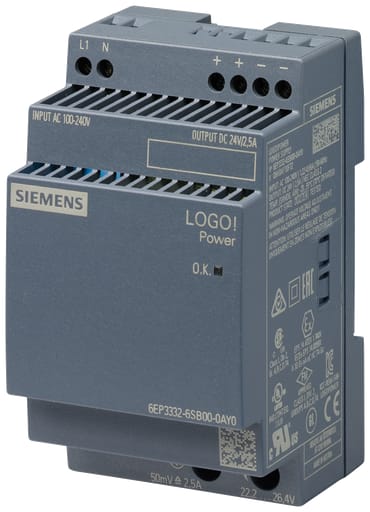

Siemens - Siemens 6EP33326SB000AY0 LOGO POWER 24V

CopyCopy
Siemens - Siemens 6EP33326SB000AY0 LOGO POWER 24V

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 804766420399

  • Amperage - 2.5 Amp

  • Applications - Power supply LOGO!Power

  • Catalog Number - 6EP33326SB000AY0

  • Country of Origin - Austria

Packaging

  • 1 ea

EAN

00804766420399

Part #

145009

Catalog #

6EP33326SB000AY0

Commercial reference

6EP33326SB000AY0

12-Digit UPC:

804766420399

Amperage:

2.5 Amp

Applications:

Power supply LOGO!Power

Catalog Number:

6EP33326SB000AY0

Country of Origin:

Austria

Depths:

53 mm

ERP_productname:

SIEM 6EP33326SB000AY0 LOGO POWER 24 V/2.5 A

Family Brand Name:

Siemens

Heights:

2.8 Inch

Input Voltage:

24 VAC/VDC

Length:

3-1/2 Inch

Mounting Type:

35 x 15 mm DIN Rail

Number of Phases:

1 Phase

Sub Brand:

LOGO Power

Type:

1-Phase

Voltage:

24 Volt

Wattage:

60 Watt

Widths:

2.600 in

SoneparProductId:

SKU_US_27153308

LOGO!POWER 24 V / 2.5 A Stabilized power supply input: 100-240 V AC output: 24 V DC/ 2.5 A *Ex approval no longer available* The miniature LOGO!Power power supply units in the same design as the LOGO!8 modules offer great performance in the smallest of spaces. The high degree of efficiency across the entire load range and the low power loss in no-load operation ensure efficient operation. The wide-range input for single-phase supply systems and for DC power networks as well as the power reserve when switching on capacitive loads satisfy the requirements of numerous applications. The large temperature range and extensive certifications make them suitable for universal use. The reliable power supplies with their flat, stepped-profile enclosure can be integrated extremely flexibly, for example in distribution boards. Regardless of the industry or requirements, Siemens offers reliable and efficient power supplies for every plant.
