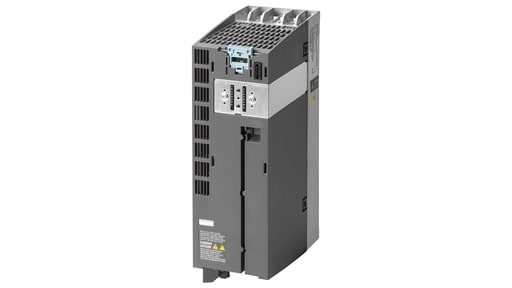

Siemens - Siemens 6SL32101PE180UL1 SINAMICS PM240
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 887621779900
Catalog Number - 6SL32101PE180UL1
Depths - 165 mm
ERP_productname - SIEM 6SL32101PE180UL1 SINAMICS PM240-2 IP20-FSA-U-400V-3KW
Family Brand Name - Siemens
Packaging
1 ea
EAN
00887621779900
Part #
391636
Catalog #
6SL32101PE180UL1
Commercial reference
6SL32101PE180UL1
12-Digit UPC:
887621779900
Catalog Number:
6SL32101PE180UL1
Depths:
165 mm
ERP_productname:
SIEM 6SL32101PE180UL1 SINAMICS PM240-2 IP20-FSA-U-400V-3KW
Family Brand Name:
Siemens
Heights:
196 mm
Widths:
73 mm
SoneparProductId:
SKU_US_32235679

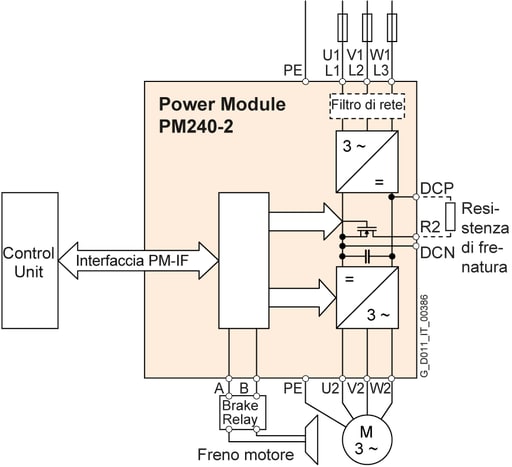

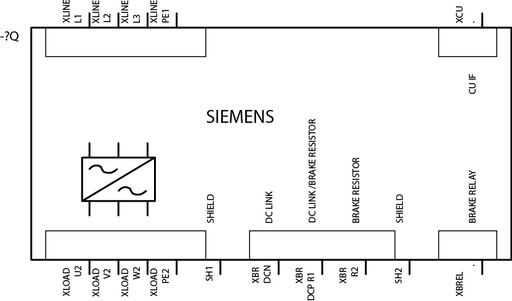

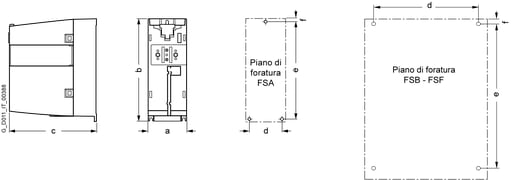

SINAMICS POWER MODULE PM240-2 UNFILTERED WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 2,2KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP. -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 3KW AT 150% 3S,110% 57S,100% 240S AMBIENT TEMP. -10 TO +40 DEG C 196 X 73 X 165 (HXWXD), FSA PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE-VERSION V4.6
