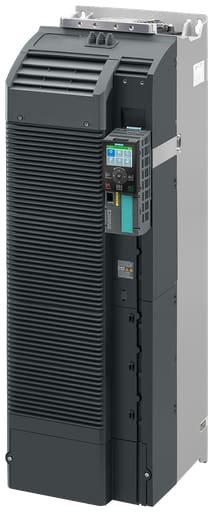

Siemens - Siemens 6SL32101PE330AL0 SINAMICS PM240
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 804766567773
Catalog Number - 6SL32101PE330AL0
Country of Origin - Germany
Depths - 357 mm
ERP_productname - SIEM 6SL32101PE330AL0 SINAMICS PM240-2 FSG-C2-400V-160KW
Packaging
1 ea
EAN
00804766567773
Part #
129215
Catalog #
6SL32101PE330AL0
Commercial reference
6SL32101PE330AL0
12-Digit UPC:
804766567773
Catalog Number:
6SL32101PE330AL0
Country of Origin:
Germany
Depths:
357 mm
ERP_productname:
SIEM 6SL32101PE330AL0 SINAMICS PM240-2 FSG-C2-400V-160KW
Family Brand Name:
Siemens
Heights:
591 mm
Length:
395 mm
Number of Phases:
3,3 Phase
Widths:
1190.000 mm
SoneparProductId:
SKU_US_193614123
SINAMICS G120/S120 POWER MODULE PM240-2 FSG C2 WITH BUILT IN BRAKING CHOPPER 3AC380-480V+10/-10% 47-63Hz OUTPUT HIGH OVERLOAD: 132kW FOR 200% 3S.150% 57S.100% 240S AMBIENT TEMP -20 bis +50 DEG C (HO) OUTPUT LOW OVERLOAD: 160kW FOR 150% 3S.110% 57S.100% 240S AMBIENT TEMP -20 bis +40 DEG C (LO) 1000x305x357 (HXWXD). FSG PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- Version V4.7 SP9 AND V5.1
