Siemens - Siemens 8WD4420-0FA SIG.COL.BUZZER ELEM

CopyCopy
Siemens - Siemens 8WD4420-0FA SIG.COL.BUZZER ELEM

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 754554781310

  • Amperage - 0.025 Amp

  • Applications - Displaying Individual Assembly Stages

  • Catalog Number - 8WD44200FA

  • Color - Black

Packaging

  • 1 ea

EAN

00754554781310

Part #

222211

Catalog #

8WD4420-0FA

Commercial reference

8WD4420-0FA

12-Digit UPC:

754554781310

Amperage:

0.025 Amp

Applications:

Displaying Individual Assembly Stages

Catalog Number:

8WD44200FA

Color:

Black

Country of Origin:

Germany

ERP_productname:

SIEM 8WD4420-0FA SIG.COL.BUZZER ELE .SOUND/PULSED 24V

Family Brand Name:

Siemens

Heights:

2.72 Inch

Length:

2.92 Inch

Material:

Polycarbonate

Mounting Type:

Surface

Shape:

Round

Sub Brand:

Pilot Devices

Type:

Round, Sound/Pulsed, Signaling Column

Voltage:

24 VAC/VDC

Widths:

3.000 in

SoneparProductId:

SKU_US_30759180

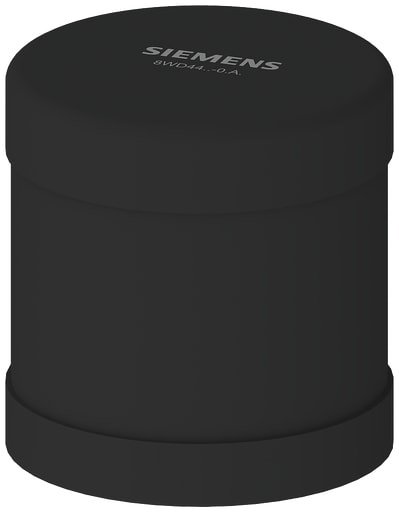

Buzzer element, continuous tone or pulsating, adjustable, 85 dB, black, 24 V AC/DC, diameter 70 mm Buzzer element SIRIUS 8WD4 for modular installation of signaling columns, e.g. for visual and/or acoustic warning devices or for the control of complex processes. Thanks to the high degree of protection, the rugged devices are suitable for industrial use and are extremely resistant to shocks and vibrations. The secure bayonet mechanism allows easy installation as well as quick replacement of the acoustic elements. Acoustic elements can be adjusted in tone and volume. In addition to a continuous light, flashlights, blinklights and rotating lights in various colors and voltages are available, as well as buzzers and sirens. They can be supplied with various diameters, optionally also with communication capability through connection to AS-Interface Optimum light distribution is achieved by using several LEDs in one light module. Feet, pipes, brackets, incandescent lamps, LEDs and pipe adapters are available as accessories. SIRIUS 8WD signaling columns - Modular and communication-capable with modern design.
