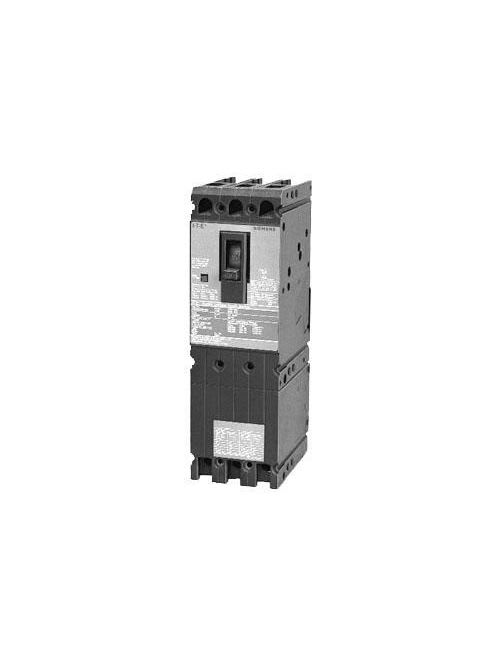

Siemens - Siemens CED63B020L BRKR CED6 3P 600V 20
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783643236684
Actuator - Varying
Amperage - 20 Amp
Applications - Standard 40C Breaker
Catalog Number - CED63B020L
Packaging
1 ea
EAN
00783643236684
Part #
388277
Catalog #
CED63B020L
Commercial reference
CED63B020L
12-Digit UPC:
783643236684
Actuator:
Varying
Amperage:
20 Amp
Applications:
Standard 40C Breaker
Catalog Number:
CED63B020L
ERP_productname:
SIEM CED63B020L BRKR CED6 3P 600V 20A LUG
Enclosure:
Varying
Family Brand Name:
Siemens
Frame:
ED
Heights:
5 Inch
Interrupt Rating:
100 kAIC
Length:
3 Inch
Number of Poles:
3 Pole
Sub Brand:
Sentron
Tc Connection:
Line/Load lugs installed
Trip Type:
Thermal-Magnetic
Type:
CED6
Voltage:
500 Volt
Widths:
10 in
SoneparProductId:
SKU_US_31544675
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH FUSELESS CURRENT LIMITING BREAKING CAPACITY. 20A 3-POLE (100KAIC AT 600V) (200KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (SA1E025) WIRE RANGE 14- 10AWG (CU) / 12 - 10AWG (AL). DIMENSIONS (W x H x D) IN 3.00 x 9.6 x 3.92.
