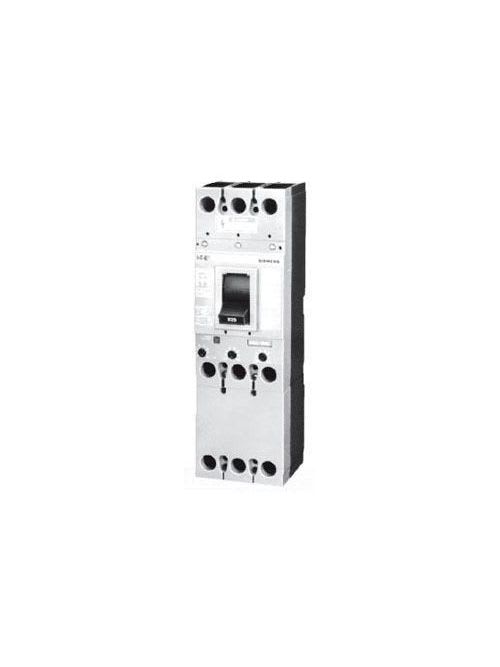

Siemens - Siemens CFD63B150L BRKR CFD6 3P 600V 15
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783643001220
Actuator - Varying
Amperage - 150 Amp
Applications - Standard 40C Breaker
Catalog Number - CFD63B150L
Packaging
1 ea
EAN
00783643001220
Part #
305667
Catalog #
CFD63B150L
Commercial reference
CFD63B150L
12-Digit UPC:
783643001220
Actuator:
Varying
Amperage:
150 Amp
Applications:
Standard 40C Breaker
Catalog Number:
CFD63B150L
ERP_productname:
SIEM CFD63B150L BRKR CFD6 3P 600V 150A LUG
Enclosure:
Varying
Family Brand Name:
Siemens
Frame:
FD
Heights:
15 Inch
Interrupt Rating:
100 kAIC
Length:
7
Number of Poles:
3 Pole
Sub Brand:
Sentron
Tc Connection:
Line/Load lugs installed
Trip Type:
Thermal Magnetic
Type:
CFD6
Voltage:
500 Volt
Widths:
6.000
SoneparProductId:
SKU_US_29062717
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH FUSELESS CURRENT LIMITING BREAKING CAPACITY. 150A 3-POLE (100KAIC AT 600V) (200KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA1FD350A) WIRE RANGE 6AWG - 350KCMIL (CU) / 4AWG - 350KCMIL (AL). DIMENSIONS (W x H x D) IN 4.50 x 14.3 x 4.00.
