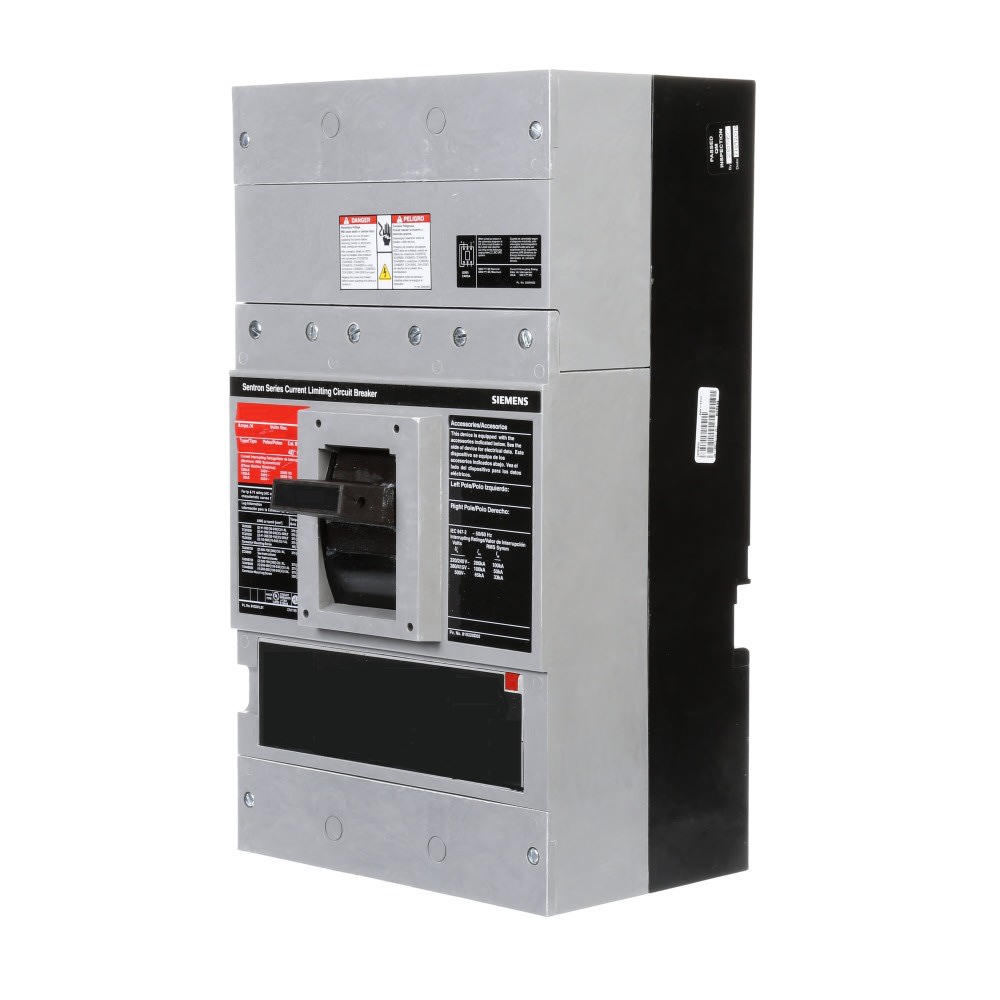

Siemens - Siemens CND63B100 ND MCCB,65kA@6
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783643215863
Actuator - Varying
Amperage - 1000 Amp
Applications - Standard 40C Breaker
Catalog Number - CND63B100
Packaging
1 ea
EAN
00783643215863
Part #
322409
Catalog #
CND63B100
Commercial reference
CND63B100
12-Digit UPC:
783643215863
Actuator:
Varying
Amperage:
1000 Amp
Applications:
Standard 40C Breaker
Catalog Number:
CND63B100
Current:
1000 Amp
ERP_productname:
SIEM CND63B100 BRKR CND6 3P 600V 1000A
Enclosure:
Varying
Family Brand Name:
Siemens Canada
Frame:
ND
Heights:
19 Inch
Interrupt Rating:
65 kAIC
Length:
10 Inch
Number of Poles:
3 Pole
Sub Brand:
Molded Case Circuit Breakers
Tc Connection:
N/A
Trip Type:
Thermal-Magnetic
Type:
CND6
Voltage:
600 Volt
Widths:
12 in
SoneparProductId:
SKU_US_126050447
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER ND FRAME WITH FUSELESS CURRENT LIMITING BREAKING CAPACITY. 1000A 3-POLE (65KAIC AT 600V) (100KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x Hx D) IN 9.00 x 16.0 x 6.00.
