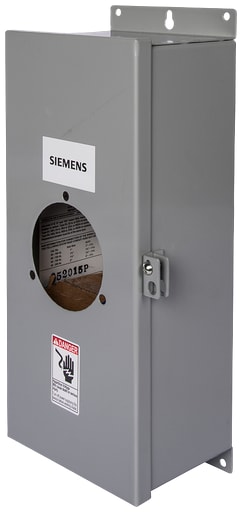

Siemens - Siemens E1SJXD23B200 BREAKER ENC1S 3P 2
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783643295186
Catalog Number - E1SJXD23B200
Country of Origin - Mexico
ERP_productname - SIEM E1SJXD23B200 BREAKER ENC1S 3P 200A 240V 65KA FXD
Enclosure - TYPE 1S
Packaging
1 ea
EAN
00783643295186
Part #
319556
Catalog #
E1SJXD23B200
Commercial reference
E1SJXD23B200
12-Digit UPC:
783643295186
Catalog Number:
E1SJXD23B200
Country of Origin:
Mexico
ERP_productname:
SIEM E1SJXD23B200 BREAKER ENC1S 3P 200A 240V 65KA FXD
Enclosure:
TYPE 1S
Family Brand Name:
Siemens
Frame:
JD
Heights:
11 Inch
Interrupt Rating:
65 kAIC
Length:
47 Inch
Number of Poles:
3 Pole
Sub Brand:
SENTRON
Trip Type:
THERMAL MAGNETIC
Type:
JXD2
Voltage:
240 Volt
Widths:
25.000 in
SoneparProductId:
SKU_US_180798108
SIEMENS LOW VOLTAGE ENCLOSED SENTRON MOLDED CASE CIRCUIT BREAKER (ASSEMBLED) WITH THERMAL - MAGNETIC TRIP UNIT. 200A 3-POLE 240V STANDARD 40 DEG C BREAKER JD FRAME WITH STANDARD BREAKING CAPACITY (JXD23B200). NON-INTERCHANGEABLE TRIP UNIT. NEMA TYPE 1 ENCLOSURE SURFACE MOUNTED (J6N1). ORDER NEUTRAL (W60992). INCLUDES LINE AND LOAD SIDE LUGS (TA2J6500) WIRE RANGE 3/0AWG - 500KCMIL (CU) / 4/0AWG - 500KCMIL (AL). ENCLOSURE DIMENSIONS (W x H x D) IN: 22.42 x 41.19 x 10.70.
