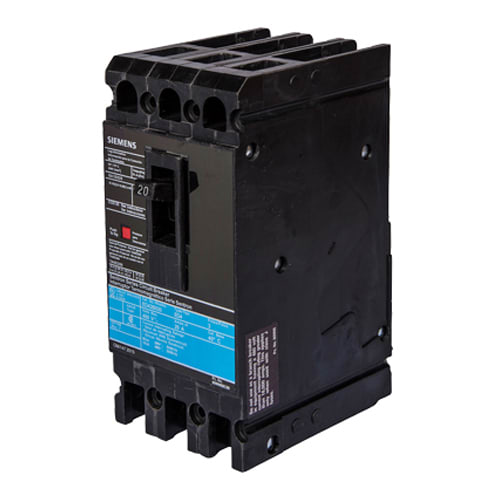

Siemens - Siemens ED43B070L 3-Pole 70 Amp 480 VAC 18 kA Circuit Breaker Lugs
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783643236202
Actuator - Varying
Applications - Standard 40C Breaker
Catalog Number - ED43B070L
Current - 70 Amp
Packaging
1 ea
EAN
00783643236202
Part #
181812
Catalog #
ED43B070L
Commercial reference
ED43B070L
12-Digit UPC:
783643236202
Actuator:
Varying
Applications:
Standard 40C Breaker
Catalog Number:
ED43B070L
Current:
70 Amp
ERP_productname:
SIEM ED43B070L BRKR ED4 3P 480V 70A LUG
Enclosure:
Varying
Family Brand Name:
Siemens Canada
Frame:
ED
Heights:
7 Inch
Interrupt Rating:
18 kAIC
Length:
4
Number of Poles:
3 Pole
Sub Brand:
Sentron
Tc Connection:
Line/Load lugs installed
Trip Type:
Thermal-Magnetic
Type:
ED4
Voltage:
250 Volt
Widths:
6.000
SoneparProductId:
SKU_US_25372885
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY. 70A 3-POLE (18KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (LN1E100) WIRE RANGE 10 - 1/0AWG (CU/AL). DIMENSIONS (W x Hx D) IN 3.00 x 6.4 x 3.92.
