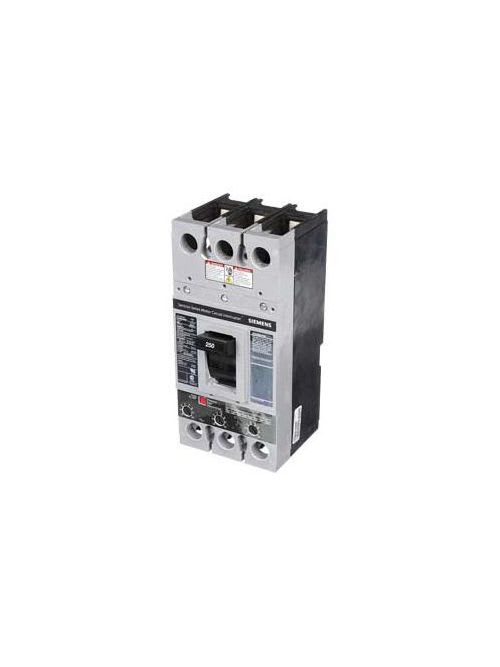

Siemens - Siemens FXD63A250L 3-Pole 250 Amp 600 VAC 22 kA ETI Circuit Breaker
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783643005761
Actuator - Varying
Amperage - 250 Amp
Applications - Standard Range ETI Breaker
Catalog Number - FXD63A250L
Packaging
1 ea
EAN
00783643005761
Part #
152009
Catalog #
FXD63A250L
Commercial reference
FXD63A250L
12-Digit UPC:
783643005761
Actuator:
Varying
Amperage:
250 Amp
Applications:
Standard Range ETI Breaker
Catalog Number:
FXD63A250L
ERP_productname:
SIEM FXD63A250L BREAKER FD 3P 250A 600V 22KA ETI LUGS
Enclosure:
Varying
Family Brand Name:
Siemens
Frame:
FD
Heights:
11 Inch
Interrupt Rating:
22 kAIC
Length:
7
Number of Poles:
3 Pole
Sub Brand:
Sentron
Tc Connection:
Line/Load lugs installed
Trip Type:
Thermal-Magnetic
Type:
FXD6
Voltage:
600 Volt
Widths:
6.000
SoneparProductId:
SKU_US_26672183
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH MAGNETIC TRIP ONLYUNIT. STANDARD RANGE ETI BREAKER FD FRAME WITH STAND ARDBREAKING CAPACITY AND NON INTERCHANGEABLE TRIP. MEETS UL 489 / IEC60947-2 STANDARDS. 250A 3-POLE BREAKER (22KAIC AT 600V) (35KAIC AT480V). SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA1FD350A) WIRE RANGE 6AWG - 350KCM (CU) / 4AWG - 350KCM (AL). DIMENSIONS (W x H xD) IN 4.5x 9.5 x 4.____________________________________________________ ____________________
