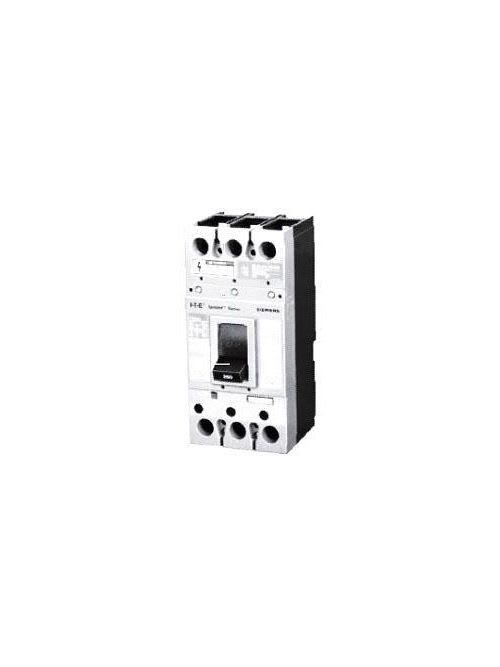

Siemens - Siemens FXD63B125L 3-Pole 125 Amp 600 VAC 22 kA ETI Circuit Breaker
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783643005877
Actuator - Varying
Amperage - 125 Amp
Applications - Standard 40C Breaker
Catalog Number - FXD63B125L
Packaging
1 ea
EAN
00783643005877
Part #
190256
Catalog #
FXD63B125L
Commercial reference
FXD63B125L
12-Digit UPC:
783643005877
Actuator:
Varying
Amperage:
125 Amp
Applications:
Standard 40C Breaker
Catalog Number:
FXD63B125L
ERP_productname:
SIEM FXD63B125L BRKR FD6 3P 600V 125A FX LUG
Enclosure:
Varying
Family Brand Name:
Siemens
Frame:
FD
Heights:
11 Inch
Interrupt Rating:
22 kAIC
Length:
5
Number of Poles:
3 Pole
Sub Brand:
Sentron
Tc Connection:
Line/Load lugs installed
Trip Type:
Thermal Magnetic
Type:
FXD6, Standard
Voltage:
600 Volt
Widths:
7.000
SoneparProductId:
SKU_US_26369961
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH STANDARD BREAKING CAPACITY. 125A 3-POLE (22KAIC AT 600V) (35KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA1FD350A) WIRE RANGE 6AWG - 350KCMIL (CU) / 4AWG - 350KCMIL (AL). DIMENSIONS (W x H x D) IN 4.50 x 9.5 x 4.00.
