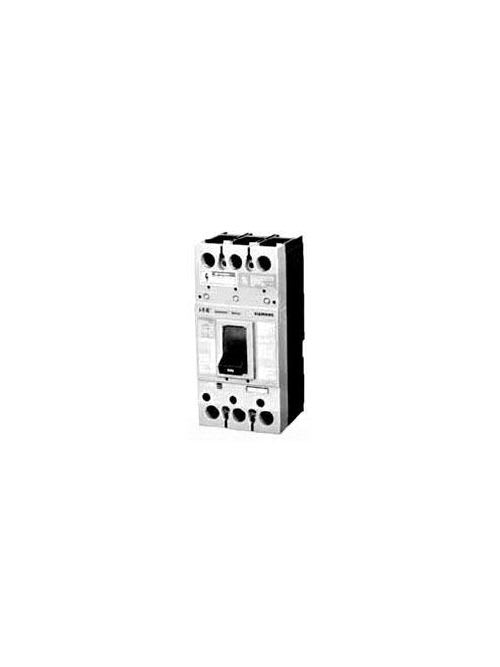

Siemens - Siemens HFD63B200L 3-Pole 200 Amp 600 Volt 25 kA Molded Case Circuit Breaker
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783643235915
Actuator - Varying
Amperage - 200 Amp
Applications - Standard 40C Breaker
Catalog Number - HFD63B200L
Packaging
1 ea
EAN
00783643235915
Part #
184977
Catalog #
HFD63B200L
Commercial reference
HFD63B200L
12-Digit UPC:
783643235915
Actuator:
Varying
Amperage:
200 Amp
Applications:
Standard 40C Breaker
Catalog Number:
HFD63B200L
ERP_productname:
SIEM HFD63B200L BREAKER FD 3P 200A 600V 25KA ASSY LUGS
Enclosure:
Varying
Family Brand Name:
Siemens
Frame:
FD
Heights:
11 Inch
Interrupt Rating:
25 kAIC
Length:
7
Number of Poles:
3 Pole
Sub Brand:
Sentron
Tc Connection:
Line/Load lugs installed
Trip Type:
Thermal-Magnetic
Type:
HFD6
Voltage:
600 Volt
Widths:
6.000
SoneparProductId:
SKU_US_26556447
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH HIGH BREAKING CAPACITY. 200A 3-POLE (25KAIC AT 600V) (65KAIC AT 480V). INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA1FD350A) WIRE RANGE 6AWG - 350KCMIL (CU) / 4AWG - 350KCMIL (AL). DIMENSIONS (W x H x D) IN 4.50 x 9.5 x 4.00.
