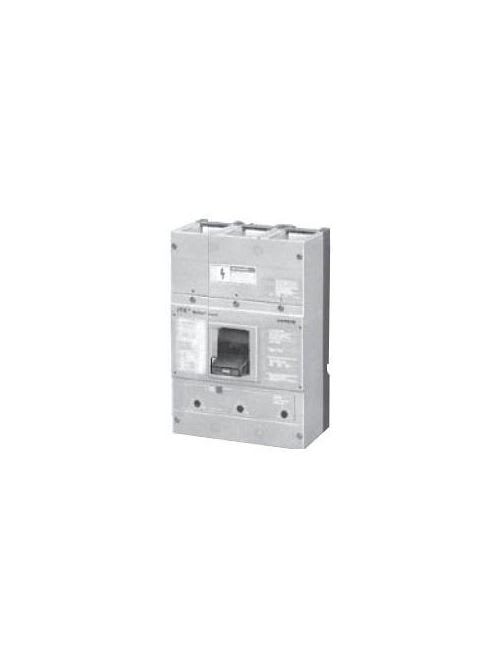

Siemens - Siemens JXD63B300L 3-Pole 600 VAC 300 Amp 25 kA Non-Interchangeable Trip Thermal Magnetic Molded Case Circuit Breaker
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783643009523
Actuator - Varying
Amperage - 300 Amp
Applications - Standard 40C Breaker
Catalog Number - JXD63B300L
Packaging
1 ea
EAN
00783643009523
Part #
150075
Catalog #
JXD63B300L
Commercial reference
JXD63B300L
12-Digit UPC:
783643009523
Actuator:
Varying
Amperage:
300 Amp
Applications:
Standard 40C Breaker
Catalog Number:
JXD63B300L
ERP_productname:
SIEM JXD63B300L BRKR JD6 3P 600V 300A FX LUG
Enclosure:
Varying
Family Brand Name:
Siemens
Frame:
JD
Heights:
15 Inch
Interrupt Rating:
25 kAIC
Length:
7
Number of Poles:
3 Pole
Sub Brand:
Sentron
Tc Connection:
Line/Load lugs installed
Trip Type:
Thermal-Magnetic
Type:
JXD6
Voltage:
250 Volt
Widths:
9.000
SoneparProductId:
SKU_US_26396849
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER JD FRAME WITH STANDARD BREAKING CAPACITY. 300A 3-POLE (25KAIC AT 600V) (35KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA2J6500) WIRE RANGE 3/0AWG - 500KCMIL (CU) / 4/0AWG - 500KCMIL (AL). DIMENSIONS (W x H x D) IN 7.50 x 11.0 x 4.00.
