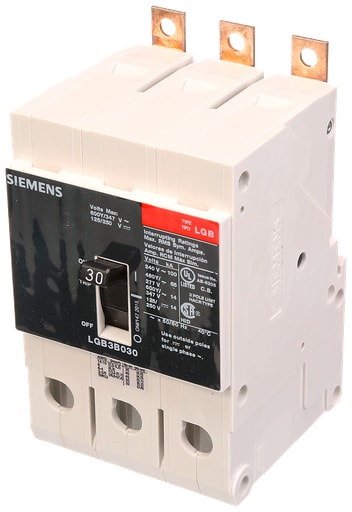

Siemens - Siemens LGB3B030B BRKR LGB 30A 3P 480Y
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 887621220242
Amperage - 30 Amp
Applications - INDUSTRIAL
Catalog Number - LGB3B030B
Country of Origin - Mexico
Packaging
1 ea
EAN
00887621220242
Part #
147017
Catalog #
LGB3B030B
Commercial reference
LGB3B030B
12-Digit UPC:
887621220242
Amperage:
30 Amp
Applications:
INDUSTRIAL
Catalog Number:
LGB3B030B
Country of Origin:
Mexico
ERP_productname:
SIEM LGB3B030B BREAKER LGB 3P 30A 480V 65KA LD LUG
Family Brand Name:
Siemens
Frame:
125A
Heights:
7.05 Inch
Interrupt Rating:
65 kAIC
Length:
5-1/2 Inch
Material:
MOLDED CASE CIRCUIT BREAKER
Number of Poles:
3 Pole
Tc Connection:
LOW TAB PANELBOARD MOUNT
Trip Type:
THERMAL MAGNETIC TRIP UNIT
Type:
LGB
Voltage:
480 Volt
Widths:
5.700 in
SoneparProductId:
SKU_US_29710436
SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED LGB FRAME WITH VERY HIGH BREAKING CAPACITY. 30A 3-POLE (14KAIC AT 600Y/347V) (65KAIC AT 480Y/277V). SPECIAL FEATURES: MOUNTS ON PANELBOARD, LOAD SIDE LUGS ONLY (TC1Q1) WIRE RANGE: 14 - 10 AWS (CU/AL). DIMENSIONS (W x H x D) IN: 3 x 5.4 x 2.8.
