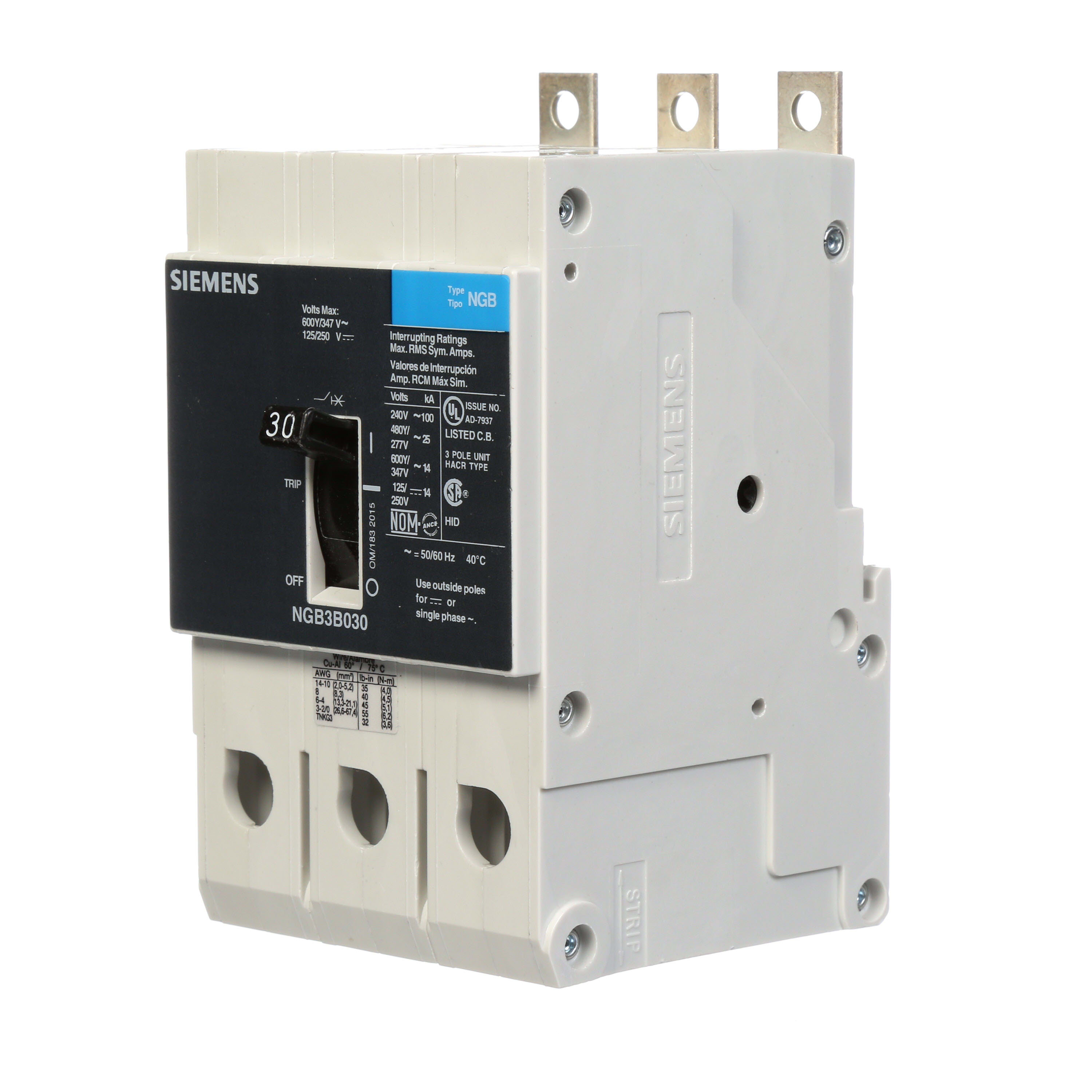

Siemens - Siemens NGB3B030B 3-Pole 30 Amp 600 Volt 14 kA Molded Case Circuit Breaker
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783643414280
Amperage - 30 Amp
Applications - INDUSTRIAL
Catalog Number - NGB3B030B
Current - 30 Amp
Packaging
1 ea
EAN
00783643414280
Part #
291899
Catalog #
NGB3B030B
Commercial reference
NGB3B030B
12-Digit UPC:
783643414280
Amperage:
30 Amp
Applications:
INDUSTRIAL
Catalog Number:
NGB3B030B
Current:
30 Amp
ERP_productname:
SIEM NGB3B030B BRKR NGB 30A 3P 480Y 25K LD LUG
Family Brand Name:
Siemens
Heights:
2.9 Inch
Interrupt Rating:
14 kAIC
Length:
4.7 Inch
Mounting Type:
Panelboard Bus
Number of Poles:
3 Pole
Sub Brand:
NGB
Tc Connection:
Load Lugs
Trip Type:
Thermal Magnetic
Type:
NGB
Voltage:
347 Volt
Widths:
3.000
SoneparProductId:
SKU_US_25385147
SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED NGB FRAME WITH STANDARD BREAKING CAPACITY. 30A 3-POLE (14KAIC AT 600Y/347V) (25KAIC AT 480Y/277V). SPECIAL FEATURES MOUNTS ON PANELBOARD, LOAD SIDE LUGS ONLY (TC1Q1) WIRE RANGE 14 - 10 AWS (CU/AL). DIMENSIONS (W x H x D) IN 3 x 5.4 x 2.8.
