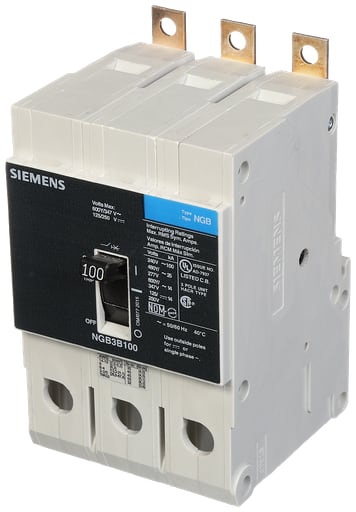

Siemens - Siemens NGB3B100B 3-Pole 100 Amp 600 Volt 14 kA Molded Case Circuit Breaker
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783643414372
Amperage - 100 Amp
Applications - INDUSTRIAL
Catalog Number - NGB3B100B
Country of Origin - Mexico
Packaging
1 ea
EAN
00783643414372
Part #
451405
Catalog #
NGB3B100B
Commercial reference
NGB3B100B
12-Digit UPC:
783643414372
Amperage:
100 Amp
Applications:
INDUSTRIAL
Catalog Number:
NGB3B100B
Country of Origin:
Mexico
Current:
100 Amp
ERP_productname:
SIEM NGB3B100B BRKR NGB 100A 3P 480Y 25K LD LUG
Family Brand Name:
Siemens
Heights:
4.9 Inch
Interrupt Rating:
14 kAIC
Length:
7-1/4 Inch
Mounting Type:
Panelboard Bus
Number of Poles:
3 Pole
Sub Brand:
NGB
Tc Connection:
Load Lugs
Trip Type:
Thermal Magnetic
Type:
NGB
Voltage:
347 Volt
Widths:
6.300 in
SoneparProductId:
SKU_US_25375745
SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED NGB FRAME WITH STANDARD BREAKING CAPACITY. 100A 3-POLE (14KAIC AT 600Y/347V) (25KAIC AT 480Y/277V). SPECIAL FEATURES MOUNTS ON PANELBOARD,LOAD SIDE LUGS ONLY (TC1GG20) WIRE RANGE 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x Hx D) IN 3 x 5.4 x 2.8.
