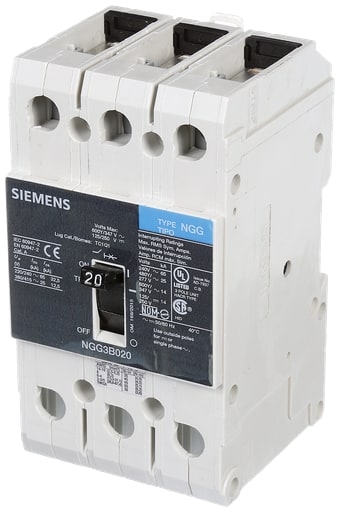

Siemens - Siemens NGG3B020L 3-Pole 480 VAC 20 Amp 25 kA Thermal Magnetic Molded Case Circuit Breaker
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783643413795
Amperage - 20 Amp
Applications - INDUSTRIAL
Catalog Number - NGG3B020L
Country of Origin - Mexico
Packaging
1 ea
EAN
00783643413795
Part #
167064
Catalog #
NGG3B020L
Commercial reference
NGG3B020L
12-Digit UPC:
783643413795
Amperage:
20 Amp
Applications:
INDUSTRIAL
Catalog Number:
NGG3B020L
Country of Origin:
Mexico
Current:
20 Amp
ERP_productname:
SIEM NGG3B020L BRKR NGG 20A 3P 480V 25K LUGS
Family Brand Name:
Siemens Canada
Heights:
4.7 Inch
Interrupt Rating:
25 kAIC
Length:
7.1 Inch
Number of Poles:
3 Pole
Sub Brand:
NGG
Tc Connection:
Line and Load Lugs
Trip Type:
Thermal Magnetic
Type:
NGG
Voltage:
480 Volt
Widths:
4.250 in
SoneparProductId:
SKU_US_26135341
SIEMENS LOW VOLTAGE G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED NGG FRAME WITH STANDARD BREAKING CAPACITY. 20A 3-POLE (14KAIC AT 600Y/347V) (25KAIC AT 480V). SPECIAL FEATURES: MOUNTS ON DIN RAIL / SCREW, LINE AND LOAD SIDE LUGS (TC1Q1) WIRE RANGE: 14 - 10 AWS (CU/AL). DIMENSIONS (W x H x D) IN: 3 x 5.4 x 2.8.
