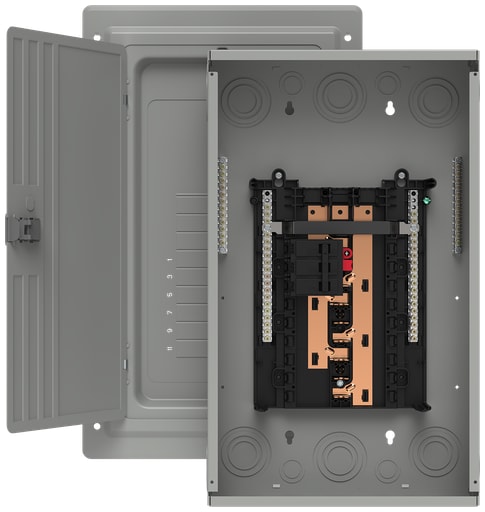

Siemens - Siemens P1224B3100CU 120/240 VAC 100 Amp 3-Phase 3/4-Wire Main Breaker/Convertible Load Center
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 040892816129
Amperage - 100 Amp
Applications - RESIDENTIALANDLIGHTCOMMERCIALELECTRICDISTRIBUTION
Catalog Number - P1224B3100CU
Circuit Breaker Type - 100A
Packaging
1 ea
EAN
00040892816129
Part #
260587
Catalog #
P1224B3100CU
Commercial reference
P1224B3100CU
12-Digit UPC:
040892816129
Amperage:
100 Amp
Applications:
RESIDENTIALANDLIGHTCOMMERCIALELECTRICDISTRIBUTION
Catalog Number:
P1224B3100CU
Circuit Breaker Type:
100A
Country of Origin:
Mexico
ERP_productname:
SIEM1 P1224B3100CU 3PH 100A LD-CTR
Enclosure:
TYPE1
Family Brand Name:
Siemens
Interrupt Rating:
22 kAIC
Number of Phases:
3 Phase
Size:
1874.5
Sub Brand:
UL
Type:
PLSERIESASSEMBLEDLOADCENTER
Voltage:
120/240 Volt
SoneparProductId:
SKU_US_26471339
SIEMENS LOW VOLTAGE PL SERIES LOAD CENTER. FACTORY INSTALLED MAIN BREAKER WITH 12 1-INCH SPACES ALLOWING MAX 24 CIRCUITS. 3-PHASE 4-WIRE SYSTEM RATED 120/240V OR 120/208V (100A) 22KA INTERRUPT. SPECIAL FEATURES: COPPER BUS, INTERCHANGEABLE MAIN, GRAY TRIM, NEMA TYPE1 ENCLOSURE FOR INDOOR USE.
