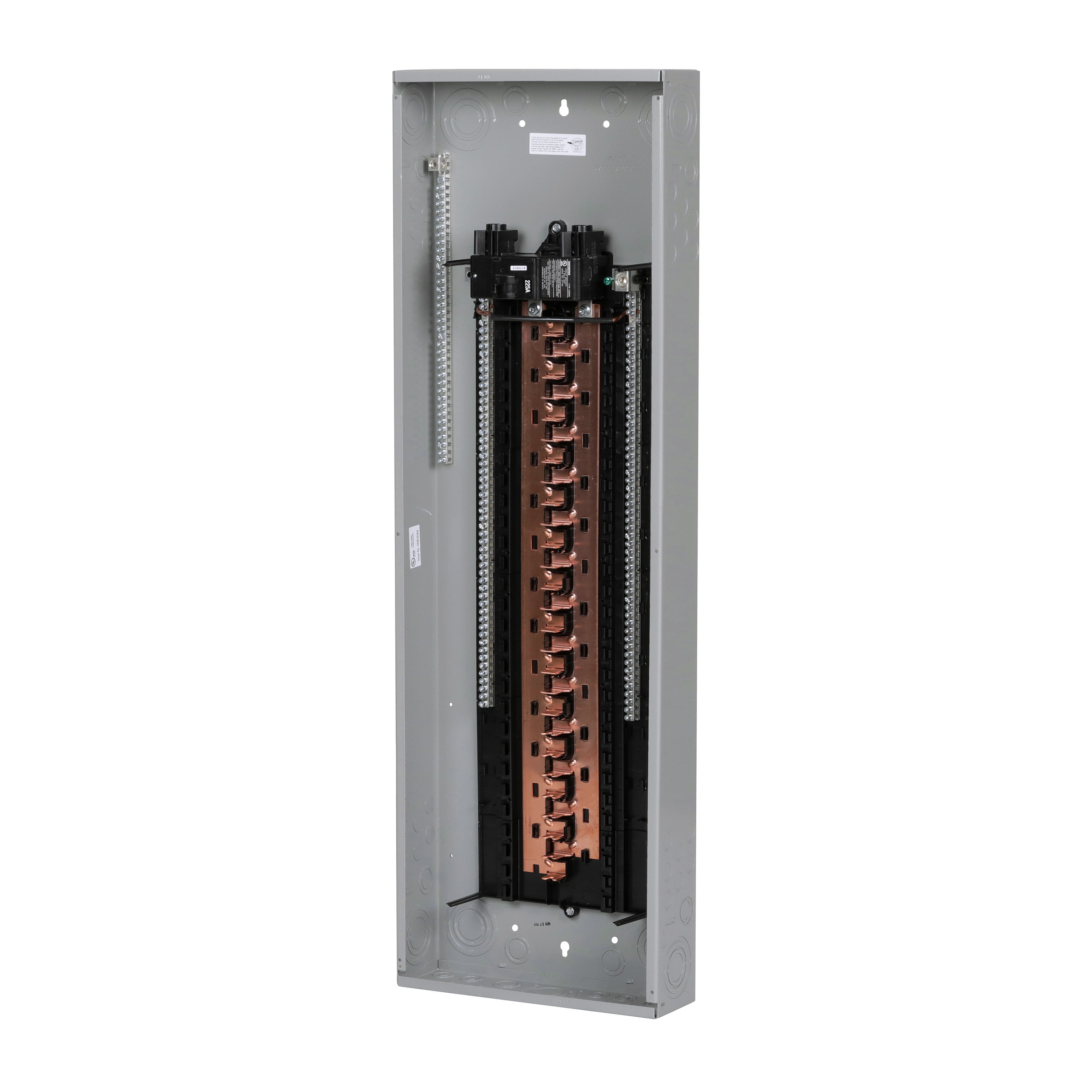

Siemens - Siemens P5470B1225CU 120/240 VAC 225 Amp 1-Phase 3-Wire NEMA 1 Main Breaker/Convertible Load Center
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 040892650617
Amperage - 225 Amp
Applications - RESIDENTIALANDLIGHTCOMMERCIALELECTRICDISTRIBUTION
Catalog Number - P5470B1225CU
Circuit Breaker Type - 225A
Packaging
1 ea
EAN
00040892650617
Part #
200658
Catalog #
P5470B1225CU
Commercial reference
P5470B1225CU
12-Digit UPC:
040892650617
Amperage:
225 Amp
Applications:
RESIDENTIALANDLIGHTCOMMERCIALELECTRICDISTRIBUTION
Catalog Number:
P5470B1225CU
Circuit Breaker Type:
225A
ERP_productname:
SIEM P5470B1225CU 1PH LC 54S 70C MB 225A CU INDOOR
Enclosure:
TYPE1
Family Brand Name:
Siemens
Interrupt Rating:
22 kAIC
Number of Phases:
1 Phase
Size:
4266.5
Sub Brand:
UL
Type:
PLSERIESASSEMBLEDLOADCENTER
Voltage:
120/240 Volt
SoneparProductId:
SKU_US_26544373
SIEMENS LOW VOLTAGE PL SERIES LOAD CENTER. FACTORY INSTALLED MAINBREAKER WITH 54 1-INCH SPACES ALLOWING MAX 70 CIRCUITS. 1-PHASE 3-WIRESYSTEM RATED 120/240V (225A) 22KA INTERRUPT. SPECIAL FEATURES COPPERBUS, INTERCHANGEABLE MAIN, GRAY TRIM, NEMA TYPE1 ENCLOSURE FOR INDOORUSE.. REPLACED BY PN5482B1225C. AVAILABLE 4/1/2020
